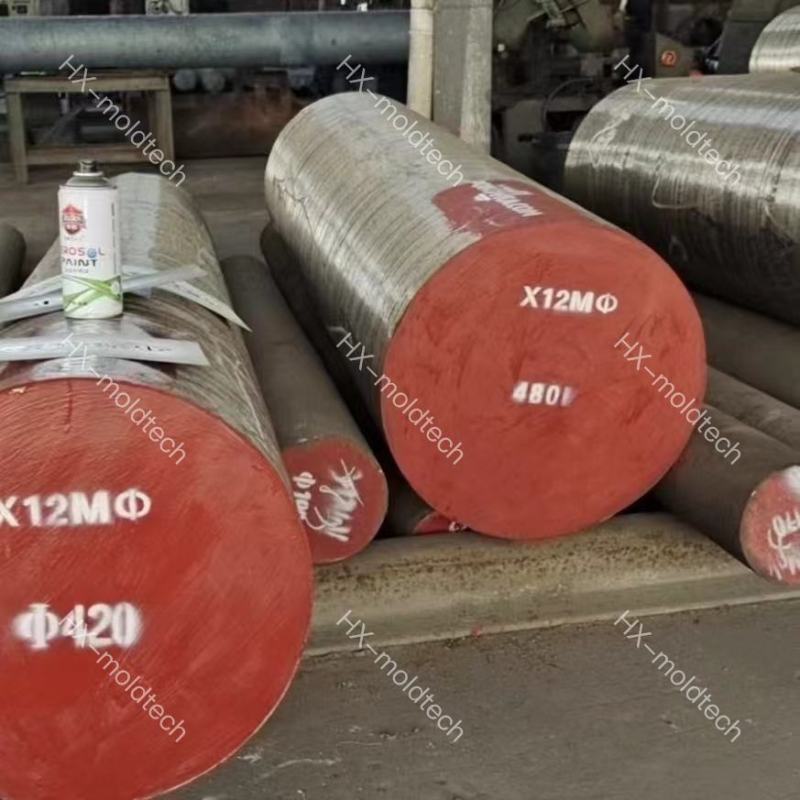

X12Mφ Cold Worked Mold Steel

The utility of X12Mφ :
1. Kitchen knives: make high-quality kitchen knives due to its ability to hold a sharp edge and resist corrosion from food acids.
2. Utility knives:utility knives for tasks such as cutting cardboard, plastic, and other materials that require a sharp and durable blade.
3. Industrial cutting tools: manufacturing of industrial cutting tools, such as shears, scissors, and blades for cutting machines, due to its high wear resistance and edge retention.
4. Hunting and outdoor knives: hunting and outdoor knives due to its ability to withstand tough conditions and maintain a sharp edge for extended periods of time.
5. Surgical instruments: manufacturing of surgical instruments due to its corrosion resistance and ability to maintain a sharp edge for precision cutting

  • HONGXIN
  • DAYE
  • 30 DAYS
  • 8000 TON/MONTH
  • Information
Product Description

X12Mφ  Cold Worked Mold Steel

X12Mφ



 1:X12Mφ steel introduction
 GB/T Cr12MoV is a Cold work tool alloy steel material grade.it is shock resisting steel. Digital Grade material number 1.2601 use in extrusion moulds, Hot Cast moulds. like aluminium production, Aluminium cutting mold. Our Tool Steel material 100 % ultrasonic tested with good price. Small size steel products make by hot rolled, large size steel products make by forging. 1.2601 with is equivalent Belong to DIN.


2:X12Mφ  steel equivalent

SteelCountry CodeC(%)V(%)Si(%)Mn(%)P(%)S(%)Cr(%)
SKD11CNS1.4-1.60.2-0.5≦0.4≦0.6≦0.03≦0.0311.0-13.0
Cr12MoVGB1.45-1.700.15-0.30≦0.4≦0.4≦0.03≦0.0311.0-12.5
SKD11JIS1.4-1.60.2-0.5≦0.4≦0.6≦0.03≦0.0311.0-13.0
X165Cr-MoV12DIN1.55-1.750.1-0.50.25-0.400.2-0.4≦0.03≦0.0311.0-12.0

3: X12Mφ  steel mechanical properties

Proof strength
Rp0.2(MPa)
Tensile strength
Rm(MPa)
Impact energy
KV(J)
Elongation at fracture
A(%)
Reduction in cross sectionon fracture
Z(%)
As-Heat-Treated ConditionBrinell hardness(HBW)
485(≥)154(≥)434244Solution and Aging,Annealing,Ausaging,Q+T,etc11


4: X12Mφ steel overviews



SizeRoundDia 12-500mm
Plate/Flat/BlockThickness
8mm-300mm

Width
210mm-710mm

ProcessEAF+LF+VD+Forged+Heat treatment(optional)
Heat treatment  Normalized ; Annealed ; Quenched ; Tempered
Surface conditionBlack; Peeled; Polished; Machined; Grinded; Turned; Milled
Delivery conditionForged; Hot rolled; Cold drawn
TestTensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc.
Payment termsT/T;L/C;/Money gram/ Paypal
Trade termsFOB; CIF; C&F; etc..
Packing Standard Packages, or as Customers Request
Delivery time30-45 days
Application DIN 1.2601 is suitable for applications High alloyed CrMoV steel for cutting tool and cold work tool steel.





5:Heat treatment

Spheroidizing annealing:860℃ X 2h furnace cooling to 750℃ and then furnace cooling to 500-550℃, remove out and air cooling

Quenched + tempered:1100℃ X 20min step quenching + 700℃ X 1h tempering,remove out and air cooling

Quenching:1030℃ X 40min oil quenching(800℃ preheating,vacuum 2.5 pa) Tempering: 250℃ X 1h


7: Delivery condition
    For hot forged or hot rolled bar, usually the delivery condition is hot forged or rolled, annealed, rough turned.
    For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface.

    For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface

X12Mφ steel



X12Mφ

Hongxin Mold Tech Co.,Ltd. owns 1 set of Hot Rolling Production Line at size range  flats 8-80*210-710mm, rounds 16-50mm Dia.

12 sets of Hydraulic Forging Hammers from Power 560kgs to 6000kgs which could cover flats 40-300*210-710mm.

8 sets of EF+LF+VD

5 sets of ESR

9 sets of Milling Machines

10 sets of Turning Lathes

sets of Precision Milling Machines.

X12Mφ steel

X12Mφ material

X12Mφ

 CERTIFICATION: GB/T19001-2016/ISO9001:2015X12Mφ steel

Products' ListX12Mφ material

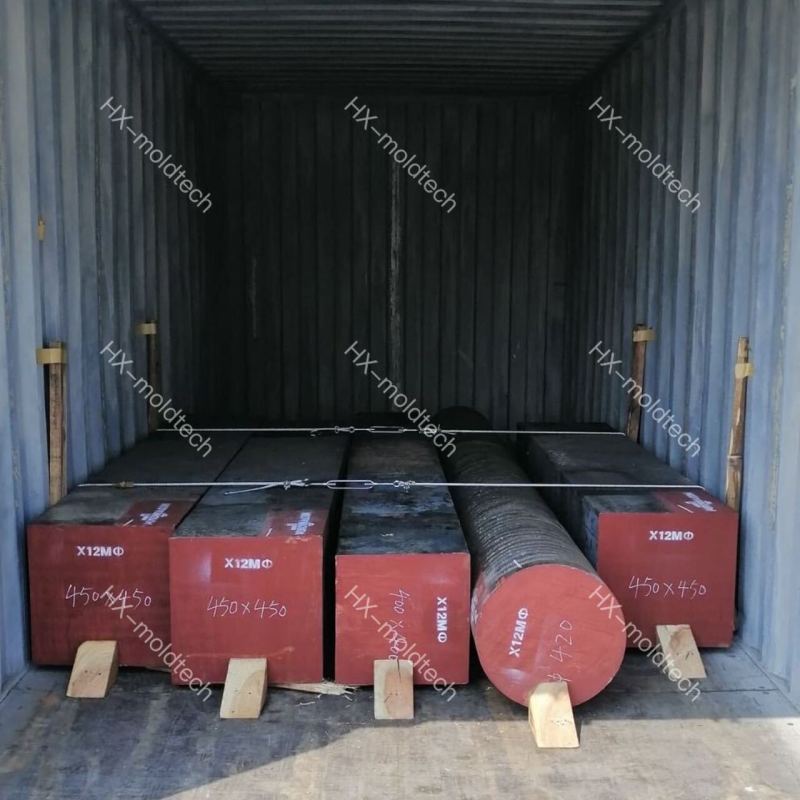

Packaging&Shipping

X12Mφ



X12Mφ material



Q1:Are you trading company or manufacturer ?
We are the biggest tool steel factory at Daye & Huangshi. We can provide a wide range of steel products.

Q2:What is alloy steel round bar export packing?

Usually bundling for large diameter,small diameter bars in bulk or as customer's demand.

Q3.What is your MOQ?

We accept small order,if it is stock,any quantities can be accepted.

Q4.What is your lead time?

Depends actual order,around 20-35 days,or negotiation.

Q5.Can you supply sample?

Yes,we can.Sample fee according to your size.

 Q6:What certificates do you have?

ISO, ABS, BV, CCS, Dnv, Lr, Gl, Mill Certificate

Q7: How can I get your quotation as soon as possible?
The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement,we will work out a best price soon.
