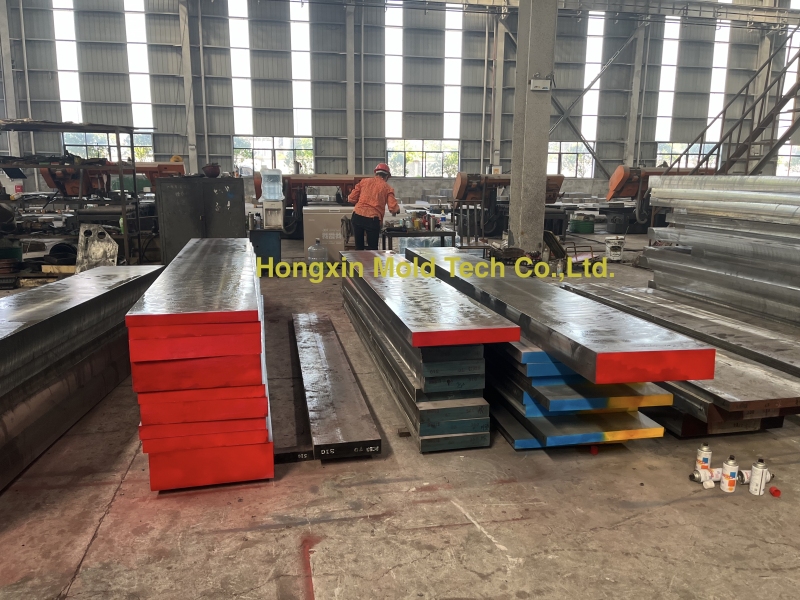

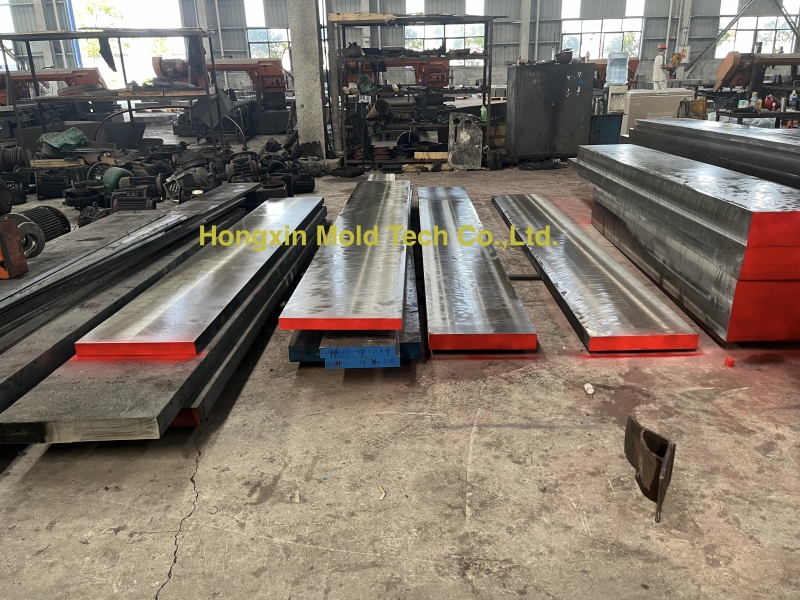

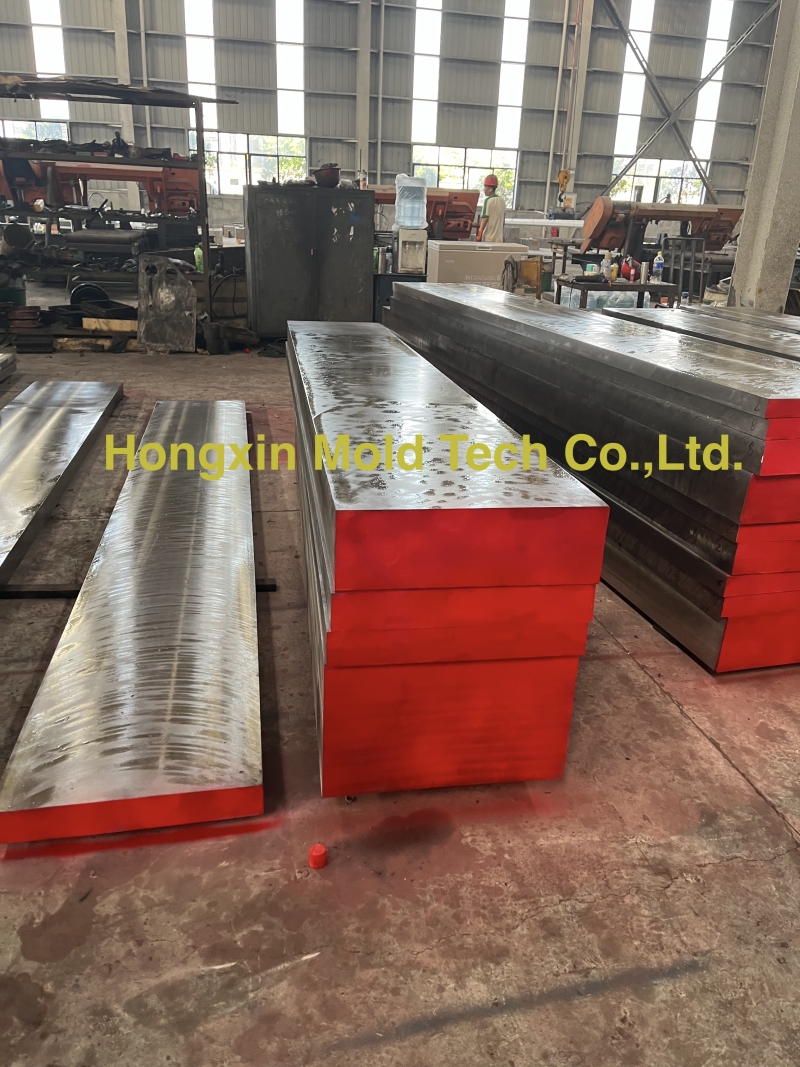

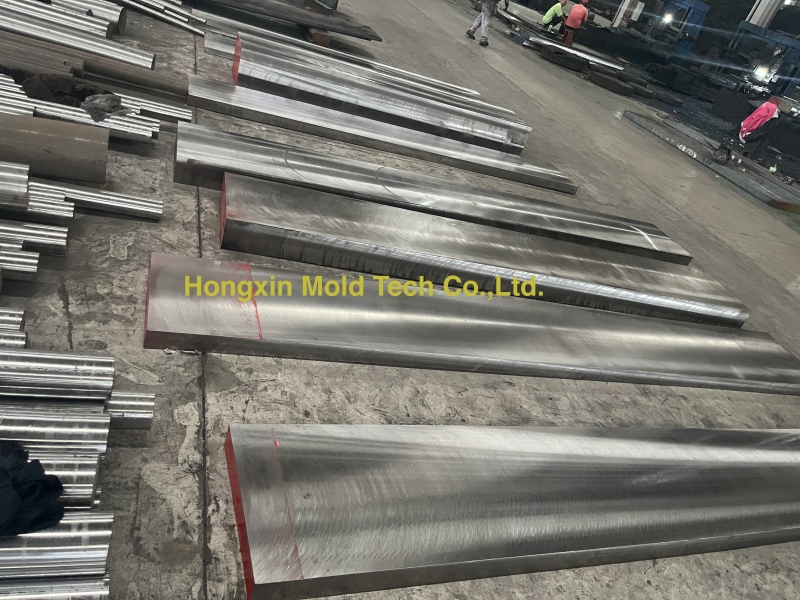

HMD5 Cold Worked Tool Steel
The usage of HMD5/7CrSiMnMoV steel includes:
1. Tool and die making: 7CrSiMnMoV is often used to make cutting tools, molds, and dies for metalworking, woodworking, and plastic molding industries due to its high hardness and wear resistance.
2. Machine components: This alloy is used in the manufacturing of various machine parts, such as gears, shafts, and bearings, where high strength and toughness are required.
3. Automotive industry: 7CrSiMnMoV steel is used in the production of automotive components, such as engine parts, transmission gears, and suspension components, due to its ability to withstand high stress and wear.
4. Construction and mining equipment: The alloy is also used in the construction and mining industries for making drilling tools, cutting edges, and other equipment that require resistance to abrasion and impact.
5. Aerospace and defense applications: 7CrSiMnMoV steel is used in the aerospace and defense industries for manufacturing components that need to withstand harsh environments and high loads.
- HONGXING
- DAYE
- 30 DAYS
- 8000 TON/MONTH
- Information
HMD5 Cold Worked Tool Steel
1: HMD5 steel introduction
HMD5/7CrSiMnMoV is a type of steel alloy that is commonly used in the manufacturing of tools and machinery components. This alloy is known for its high strength, hardness, and wear resistance, making it suitable for applications that require durability and toughness.
2: HMD5 Steel equivalent
| Country | China | Japan | Germany | USA | UK |
| Standard | GB/T 1299 | JIS G4404 | DIN EN ISO4957 | ASTM A681 | BS 4659 |
| Grade | 7CrSiMnMoV | HMD5 | / | / | / |
3: HMD5 steel chemical composition
| Grade | C | Mn | P | S | Si | Cr | V | Mo | |||||
| HMD5 | 0.75 | 0.95 | 0.70 | 1.00 | 0.03 | 0.03 | 0.90 | 1.10 | 1.00 | 1.20 | 0.05 | 1.10 | 0.15~0.30 |
| 7CrSiMnMoV | 0.75 | 0.95 | 0.70 | 1.00 | 0.03 | 0.03 | 0.90 | 1.10 | 1.00 | 1.20 | 0.05 | 1.10 | 0.15~0.30 |
4: HMD5 steel mechanical properties
1.) Hardness: The hardness of 7CrSiMnMoV typically ranges from 58 to 62 HRC (Rockwell Hardness C scale), making it a very hard and wear-resistant material. 2.)Strength: 7CrSiMnMoV has a high tensile strength, typically ranging from 2000 to 2500 MPa, which makes it suitable for applications that require high strength and toughness.
3.) Toughness: This steel has good toughness and impact resistance, which helps prevent cracking and chipping during cutting or forming operations.
4.) Wear resistance: 7CrSiMnMoV has excellent wear resistance, which allows it to maintain its cutting edge sharpness and dimensional stability even under high-stress conditions. 5.) Corrosion resistance: This steel has good corrosion resistance, but it is not as corrosion-resistant as stainless steels. It is important to properly maintain and store tools made from 7CrSiMnMoV to prevent corrosion. 6.) Machinability: 7CrSiMnMoV is relatively easy to machine and grind, allowing for the production of complex and precise tooling components.
5: HMD5 steel overviews
| Size | Round | Dia 12-500mm | |
| Plate/Flat/Block | Thickness 8mm-300mm | ||
| Width 210mm-710mm | |||
| Process | EAF+LF+VD+Forged+Heat treatment(optional) | ||
| Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | ||
| Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | ||
| Delivery condition | Forged; Hot rolled; Cold drawn | ||
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | ||
| Payment terms | T/T;L/C;/Money gram/ Paypal | ||
| Trade terms | FOB; CIF; C&F; etc.. | ||
| Packing | Standard Packages, or as Customers Request | ||
| Delivery time | 30-45 days | ||
6. HMD5 Tool Steel Heat Treatment
1. )Annealing: The steel is heated to a temperature of around 800-850°C and then slowly cooled in the furnace to relieve internal stresses and improve machinability. 2. )Preheating: The steel is preheated to a temperature of around 500-600°C before the hardening process to ensure uniform heating and prevent cracking. 3. )Hardening: The steel is heated to a temperature of around 1000-1050°C and then quenched in oil, water, or polymer to achieve the desired hardness and improve wear resistance. 4. )Tempering: The hardened steel is then tempered by reheating it to a temperature of around 200-600°C, depending on the desired hardness and toughness. The tempering process helps to reduce internal stresses and improve the steel's toughness and impact resistance. 5. )Stress relieving: To further reduce internal stresses and improve dimensional stability, the steel can be stress relieved by heating it to a temperature of around 500-600°C and then slowly cooling it in the furnace. It is important to carefully control the heating and cooling rates during the heat treatment process to achieve the desired mechanical properties for 7CrSiMnMoV tool steel. Additionally, proper post-heat treatment processes such as grinding, polishing, and coating may be required to achieve the final desired surface finish and performance of the tool steel.
7: Delivery condition
For hot forged or hot rolled bar, usually the delivery condition is hot forged or rolled, annealed, rough turned.
For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface.
For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.
Hongxin Mold Tech Co.,Ltd. owns 1 set of Hot Rolling Production Line at size range flats 8-80*210-710mm, rounds 16-50mm Dia.
12 sets of Hydraulic Forging Hammers from Power 560kgs to 6000kgs which could cover flats 40-300*210-710mm.
8 sets of EF+LF+VD
5 sets of ESR
9 sets of Milling Machines
10 sets of Turning Lathes
6 sets of Precision Milling Machines.
Certification: GB/T 19001-2016/ISO9001:2015
Products' List
Q1:Are you trading company or manufacturer ?
We are the largest tool steel manufacturer in Daye & Huangshi. We can provide a wide range of steel products.
Q2:What is alloy steel round bar export packing?
Usually bundling for large diameter,small diameter bars in bulk or as customer's demand.
Q3.What is your MOQ?
We accept small order,if it is stock,any quantities can be accepted.
Q4.What is your lead time?
Depends actual order,around 20-35 days,or negotiation.
Q5.Can you supply sample?
Yes,we can.Sample fee according to your size.
Q6:What certificates do you have?
ISO, ABS, BV, CCS, Dnv, Lr, Gl, Mill Certificate
Q7: How can I get your quotation as soon as possible?
The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement,we will work out a best price soon.
