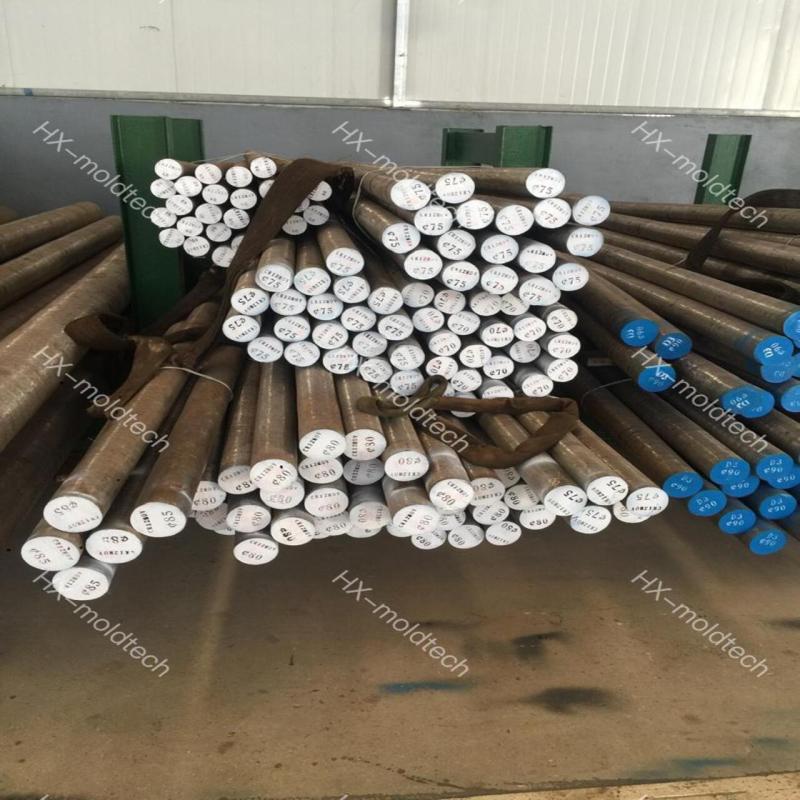

GB/T Cr12MoV Cold Worked Mold Steel
The utility of GB/T Cr12MoV:
1. Kitchen knives: make high-quality kitchen knives due to its ability to hold a sharp edge and resist corrosion from food acids.
2. Utility knives:utility knives for tasks such as cutting cardboard, plastic, and other materials that require a sharp and durable blade.
3. Industrial cutting tools: manufacturing of industrial cutting tools, such as shears, scissors, and blades for cutting machines, due to its high wear resistance and edge retention.
4. Hunting and outdoor knives: hunting and outdoor knives due to its ability to withstand tough conditions and maintain a sharp edge for extended periods of time.
5. Surgical instruments: manufacturing of surgical instruments due to its corrosion resistance and ability to maintain a sharp edge for precision cutting
- HONGXIN
- DAYE
- 30 DAYS
- 8000 TON/MONTH
- Information
GB/T Cr12MoV Cold Worked Mold Steel
1:GB/T Cr12MoV steel introduction
GB/T Cr12MoV is a Cold work tool alloy steel material grade.it is shock resisting steel. Digital Grade material number 1.2601 use in extrusion moulds, Hot Cast moulds. like aluminium production, Aluminium cutting mold. Our Tool Steel material 100 % ultrasonic tested with good price. Small size steel products make by hot rolled, large size steel products make by forging. 1.2601 with is equivalent Belong to DIN.
2:GB/T Cr12MoV steel equivalent
| Steel | Country Code | C(%) | V(%) | Si(%) | Mn(%) | P(%) | S(%) | Cr(%) |
| SKD11 | CNS | 1.4-1.6 | 0.2-0.5 | ≦0.4 | ≦0.6 | ≦0.03 | ≦0.03 | 11.0-13.0 |
| Cr12MoV | GB | 1.45-1.70 | 0.15-0.30 | ≦0.4 | ≦0.4 | ≦0.03 | ≦0.03 | 11.0-12.5 |
| SKD11 | JIS | 1.4-1.6 | 0.2-0.5 | ≦0.4 | ≦0.6 | ≦0.03 | ≦0.03 | 11.0-13.0 |
| X165Cr-MoV12 | DIN | 1.55-1.75 | 0.1-0.5 | 0.25-0.40 | 0.2-0.4 | ≦0.03 | ≦0.03 | 11.0-12.0 |
3: GB/T Cr12MoV steel mechanical properties
| Proof strength Rp0.2(MPa) | Tensile strength Rm(MPa) | Impact energy KV(J) | Elongation at fracture A(%) | Reduction in cross sectionon fracture Z(%) | As-Heat-Treated Condition | Brinell hardness(HBW) |
|---|---|---|---|---|---|---|
| 485(≥) | 154(≥) | 43 | 42 | 44 | Solution and Aging,Annealing,Ausaging,Q+T,etc | 11 |
4: GB/T Cr12MoV steel overviews
| Size | Round | Dia 12-500mm | |
| Plate/Flat/Block | Thickness 8mm-300mm | ||
| Width 210mm-710mm | |||
| Process | EAF+LF+VD+Forged+Heat treatment(optional) | ||
| Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | ||
| Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | ||
| Delivery condition | Forged; Hot rolled; Cold drawn | ||
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | ||
| Payment terms | T/T;L/C;/Money gram/ Paypal | ||
| Trade terms | FOB; CIF; C&F; etc.. | ||
| Packing | Standard Packages, or as Customers Request | ||
| Delivery time | 30-45 days | ||
| Application | DIN 1.2601 is suitable for applications High alloyed CrMoV steel for cutting tool and cold work tool steel. | ||
5:Heat treatment
Spheroidizing annealing:860℃ X 2h furnace cooling to 750℃ and then furnace cooling to 500-550℃, remove out and air cooling
Quenched + tempered:1100℃ X 20min step quenching + 700℃ X 1h tempering,remove out and air cooling
Quenching:1030℃ X 40min oil quenching(800℃ preheating,vacuum 2.5 pa) Tempering: 250℃ X 1h
7: Delivery condition
For hot forged or hot rolled bar, usually the delivery condition is hot forged or rolled, annealed, rough turned.
For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface.
For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface
Hongxin Mold Tech Co.,Ltd. owns 1 set of Hot Rolling Production Line at size range flats 8-80*210-710mm, rounds 16-50mm Dia.
12 sets of Hydraulic Forging Hammers from Power 560kgs to 6000kgs which could cover flats 40-300*210-710mm.
8 sets of EF+LF+VD
5 sets of ESR
9 sets of Milling Machines
10 sets of Turning Lathes
6 sets of Precision Milling Machines.
CERTIFICATION: GB/T19001-2016/ISO9001:2015
