DIN1.2787(X22CrNi17) Hot Worked Mold Steel

The usage is as follow:
1. Cutting tools: DIN 1.2787 is often used to make cutting tools such as drills, milling cutters, and reamers due to its high hardness and wear resistance.
2. Injection molding tools: The high toughness and resistance to abrasion of DIN 1.2787 make it a popular choice for making injection molding tools that are used in the production of plastic components.
3. Die casting molds: DIN 1.2787 is also used to make die casting molds for producing metal parts with high precision and surface finish.
4. Industrial knives: The excellent edge retention and toughness of DIN 1.2787 make it ideal for making industrial knives used in various cutting applications.

  • HONGXIN
  • DAYE
  • 30 DAYS
  • 8000 TON/MONTH
  • Information
Product Description

DIN1.2787(X22CrNi17) Hot Worked Mold Steel

1.2787 steel



1: DIN1.2787(X22CrNi17) Steel Introduction
Martensitic stainless steel similar to steel grades 2H17N2, X17CrNi16-2, 1.4057, classified as a tool steel. Available most often after electro-slag remelting - ESR, for the glass industry to high temperature glass molds and tools. Other applications are pump parts, shafts, blow moulds for plastic production.



2: DIN1.2787(X22CrNi17) Steel Equivalent

StandardSteel Grade
Chemical Composition %
C:Mn:Si:P:S:Cr:Ni:
EN/DINX22CrNi17 - X23CrNi17 - 1.2787
0.10 - 0.25<1.0<1.0<0.035<0.03515.5 - 18.01.0 - 2.5
NFX21CrNi17 - Z21CN17
0.17 - 0.25<1.0<1.0--16.0 - 18.01.5 - 2.5


3: DIN1.2787(X22CrNi17) Steel Mechanical Properties
Delivery condition + A

  • +1C, +1E, +1D, +1X, +1G, +2D

    • Tensile strength, Rm <950 MPa

    • Hardness, HB: <295

  • +2H, +2B, +2G +2P smooth bars

    • Tensile strength, Rm <950 MPa

    • Hardness, HB: <295

    • Tensile strength, Rm <1000 MPa

    • Hardness, HB: <310

    • Tensile strength, Rm <1050 MPa

    • Hardness, HB: <330

4.Heat treatment processes:

  • Softening annealing at 680 - 750℃

  • Relief annealing at 600 - 650℃

  • Hardening at 1020 - 1050℃ with cooling in oil

  • Tempering at 100 - 500℃



5: DIN1.2787(X22CrNi17) Steel Overviews

SizeRoundDia 16-500mm
Plate/Flat/BlockThickness
6mm-500mm
Width
20mm-810mm
Heat treatmentAnnealed ;
Surface conditionBlack; Peeled;Machined;etc
Delivery conditionForged; Hot rolled;
TestTensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc.
Payment termsT/T;L/C;/Money gram/ Paypal
Trade termsFOB; CIF; C&F; etc..
Delivery time45-50 days



6: Delivery Condition

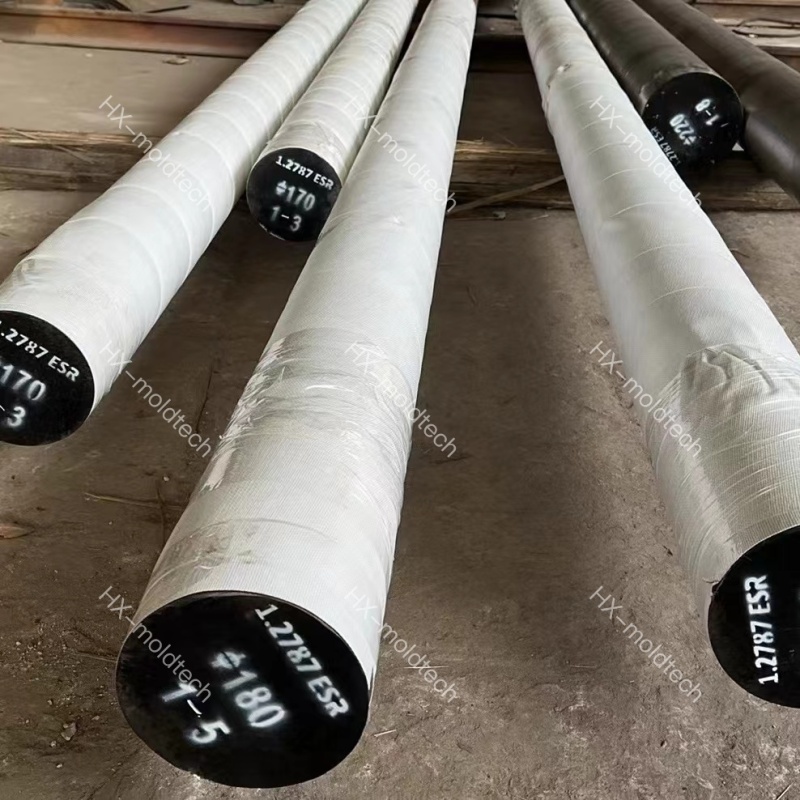

For hot forged  bar, usually the delivery condition is hot forged, annealed, rough turned/Black surface.
For hot rolled bar, usually the delivery condition is hot rolled, annealed, Black surface.

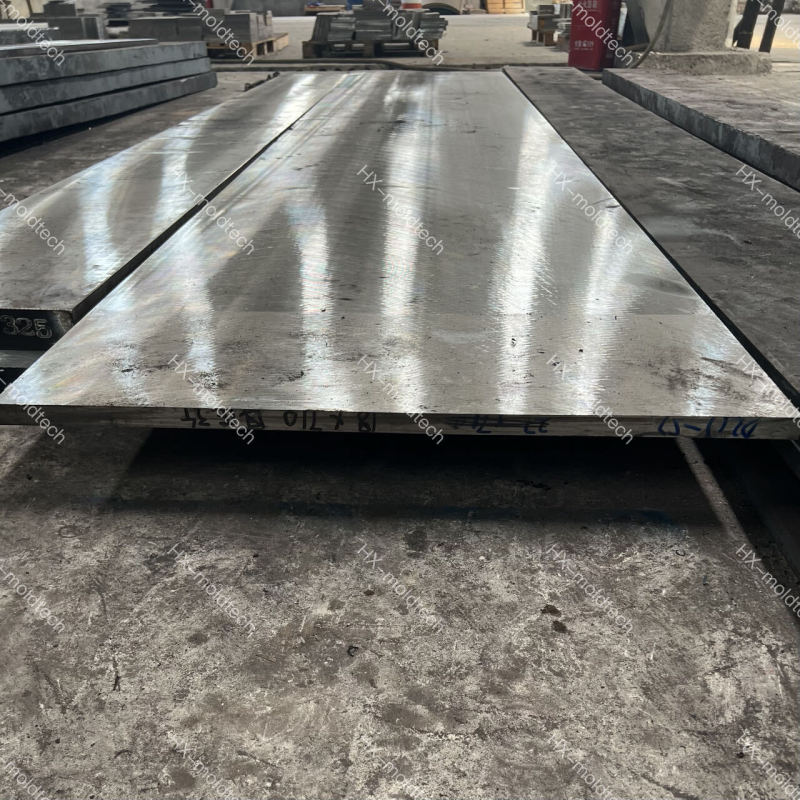

For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.1.2787 material

1.2787 steel

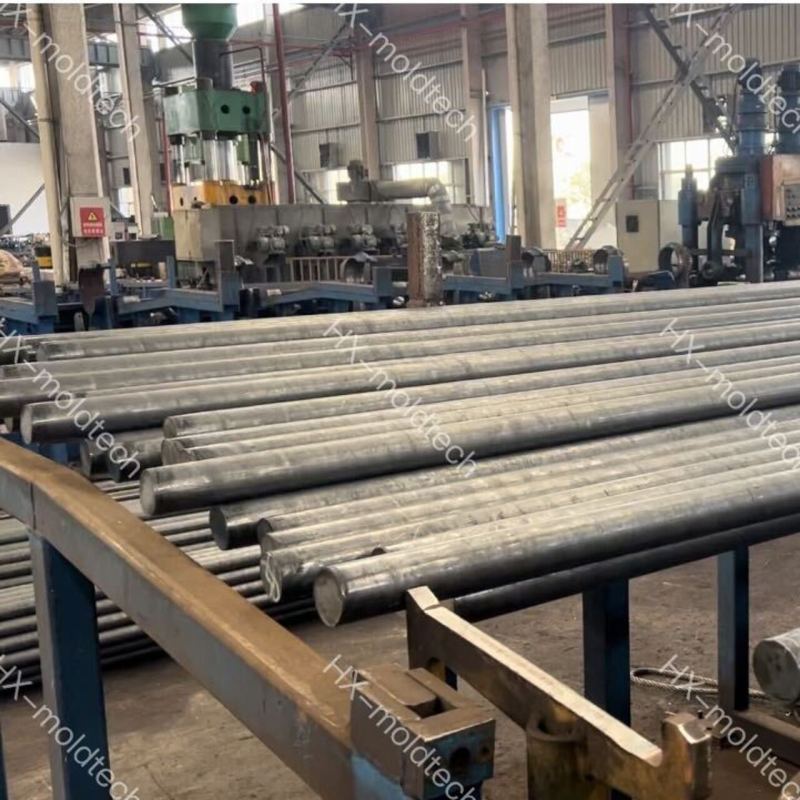

Hongxin Mold Tech Co.,Ltd. owns set of Hot Rolling Production Line at size range  flats 8-80*210-710mm, rounds 16-50mm Dia.

12 sets of Hydraulic Forging Hammers from Power 560kgs to 6000kgs which could cover flats 40-300*210-710mm.

sets of EF+LF+VD

sets of ESR

sets of Milling Machines

10 sets of Turning Lathes

6 sets of Precision Milling Machines.

 CERTIFICATION: GB/T19001-2016/ISO9001:20151.2787 material

Products' List1.2787

 Packaging&Shipping

1.2787 material

 1.2787 steel

Q1:Are you trading company or manufacturer ?
We are the biggest tool steel factory at Daye & Huangshi. We can provide a wide range of steel products.

Q2:What is alloy steel round bar export packing?

Usually bundling for large diameter,small diameter bars in bulk or as customer's demand.

Q3.What is your MOQ?

We accept small order,if it is stock,any quantities can be accepted.

Q4.What is your lead time?

Depends actual order,around 20-35 days,or negotiation.

Q5.Can you supply sample?

Yes,we can.Sample fee according to your size.

 Q6:What certificates do you have?

ISO, ABS, BV, CCS, Dnv, Lr, Gl, Mill Certificate

Q7: How can I get your quotation as soon as possible?
The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement,we will work out a best price soon.
