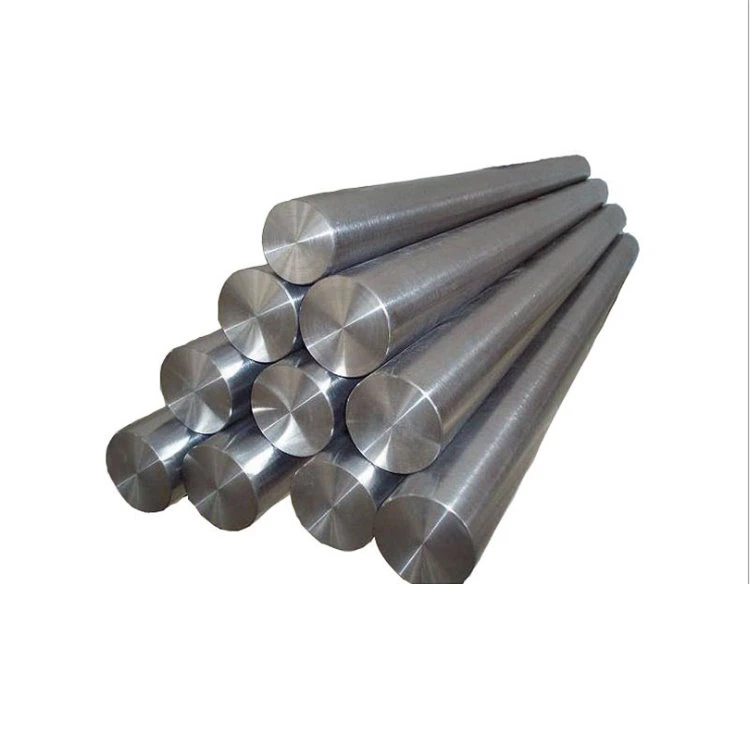

DIN1.2367 Hot Worked Tool Steel
Superior Thermal Performance: The higher molybdenum content (vs. H11/H13 steels) provides enhanced hot hardness, temper resistance, and deeper hardenability, enabling prolonged performance under extreme thermal cycling.
Exceptional Durability: Transverse toughness is up to three times higher than standard 1.2367 variants, while its thermal fatigue resistance surpasses common grades like 1.2343, ensuring extended die service life.
Optimized for High-Stress Applications: Ideal for demanding hot work tooling such as extrusion dies, hot forging dies, copper/brass die-casting molds, hot shear blades, and mandrels.
- HONGXIN
- 中国
- 30DAYS
- 8000TONS/MONTH
- Information
DIN 1.2367 Hot Work Tool Steel
1.DIN 1.2367 Tool Steel Overview
DIN 1.2367 (EN 1.2367) is a premium chromium-molybdenum-vanadium alloyed hot work tool steel, refined through the ESR (Electro-Slag Remelting) process to achieve exceptional microstructural purity, fine grain size, and homogeneity. This advanced refinement significantly enhances its thermal fatigue resistance, isotropy, and mechanical stability compared to conventional grades.
2.DIN 1.2367 Tool Steel Supply Range
Size | Round | Dia 12-500 mm |
| Plate/Flat/Block | Thickness 8mm-300mm | |
| Width 210mm-710mm | ||
| Process | EAF+LF+VD+Forged+Heat treatment(optional) |
3.DIN 1.2367 Tool Steel Chemical Composition
| Grade | C | Mn | P | S | Si | Cr | V | Mo | ||||||
| DIN1.2367 | 0.35-0.40 | 0.30-0.50 | 0.03 | 0.03 | 0.30-0.50 | 4.80-5.20 | 0.40-0.60 | 2.70-3.20 | ||||||
4.DIN 1.2367 Tool Steel Physical & Mechanical Properties
| Property | Metric Units | Imperial Units |
|---|---|---|
| Density | 7.80 g/cm³ | 0.282 lb/in³ |
| Melting Point | ~1420°C | ~2590°F |
| Property | Metric Units | Imperial Units |
|---|---|---|
| Hardness (Quenched & Tempered) | 50-54 HRC | 50-54 HRC |
| Modulus of Elasticity | 210 GPa | 30,500 ksi |
| Thermal Expansion (20-300°C) | 12.5×10⁻⁶/°C | 6.9 µin/in·°F |
| Thermal Conductivity (200°C) | 28.0 W/m·K | 194 in·lb/(hr·ft²·°F) |
Thermal Fatigue Resistance: DIN 1.2367 steel outperforms conventional grades like 1.2343 by 30%.
5.DIN 1.2367 Tool Steel Heat Treatment
Forging: Heat DIN 1.2367 steel to 1100-900°C (2012-1652°F). Avoid forging below 850°C (1562°F).
Annealing: Anneal DIN 1.2367 at 850°C, slow cool at ≤10°C/h to 600°C. Final hardness: ≤229 HB.
Quenching: Air or oil cool from 1020-1080°C (1868-1976°F).
Tempering: Temper DIN 1.2367 at 550-650°C (1022-1202°F) for 2 hours. Double tempering recommended for uniform hardness (50-54 HRC).
6.DIN 1.2367 Tool Steel Applications
DIN 1.2367 steel is ideal for high-temperature tooling due to its unmatched thermal stability:
Hot Work Dies: Extrusion dies, hot forging dies, die-casting molds for copper/brass.
Cutting Tools: Hot shear blades, punches, mandrels.
Aerospace: High-stress components like landing gear parts.
Industrial Tooling: Hot gripper dies, aluminum alloy extrusion tooling.
Why Choose DIN 1.2367?
3x higher transverse toughness vs. standard 1.2367 variants.
20% longer service life in thermal cycling vs. H11/H13.
Why DIN 1.2367 Steel Excels
ESR Refinement: DIN 1.2367 is refined via Electro-Slag Remelting (ESR), ensuring ultra-low impurities and uniform microstructure.
Deep Hardenability: The high Mo/V content allows deeper hardening for large cross-section tools.
Cost Efficiency: Reduced downtime due to extended tool life makes DIN 1.2367 a cost-effective choice.
7.Delivery Condition

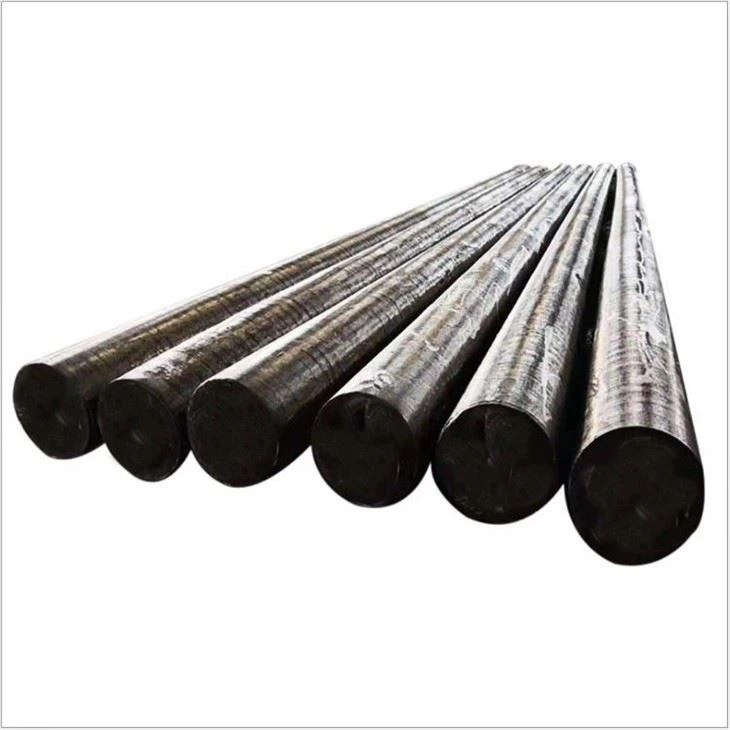

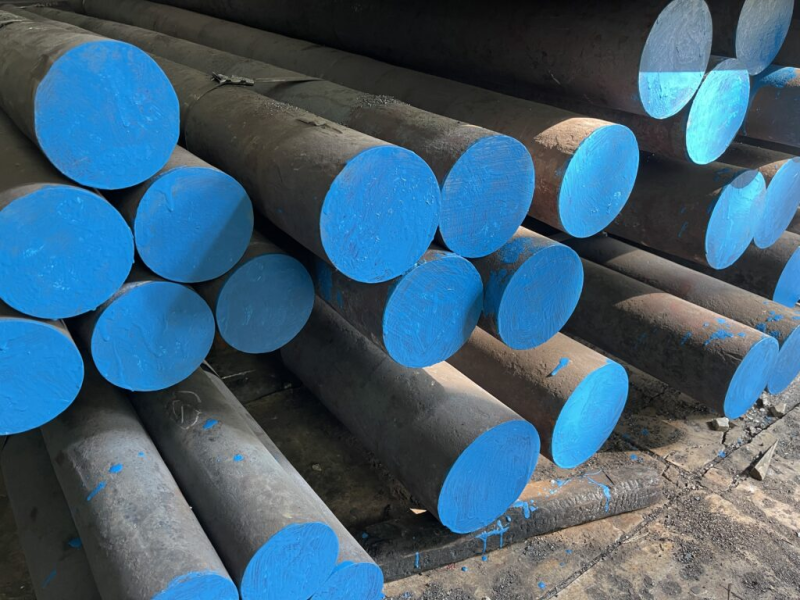

For hot forged or hot rolled bar, usually the delivery condition is hot forged or rolled, annealed, rough turned.
For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface.
For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.
Hongxin Mold Tech Co.,Ltd. owns 1 set of Hot Rolling Production Line at size range flats 8-80*210-710mm, rounds 16-50mm Dia.
12 sets of Hydraulic Forging Hammers from Power 560kgs to 6000kgs which could cover flats 40-300*210-710mm.
8 sets of EF+LF+VD
5 sets of ESR
9 sets of Milling Machines
10 sets of Turning Lathes
6 sets of Precision Milling Machines.
Supplier Commitment
We supply premium DIN 1.2367 tool steel certified to DIN EN ISO 4957. Custom sizes, heat treatment, and technical support available. Contact us for competitive pricing and DIN 1.2367 steel samples!CERTIFICATION: GB/T19001-2016/ISO9001:2015
