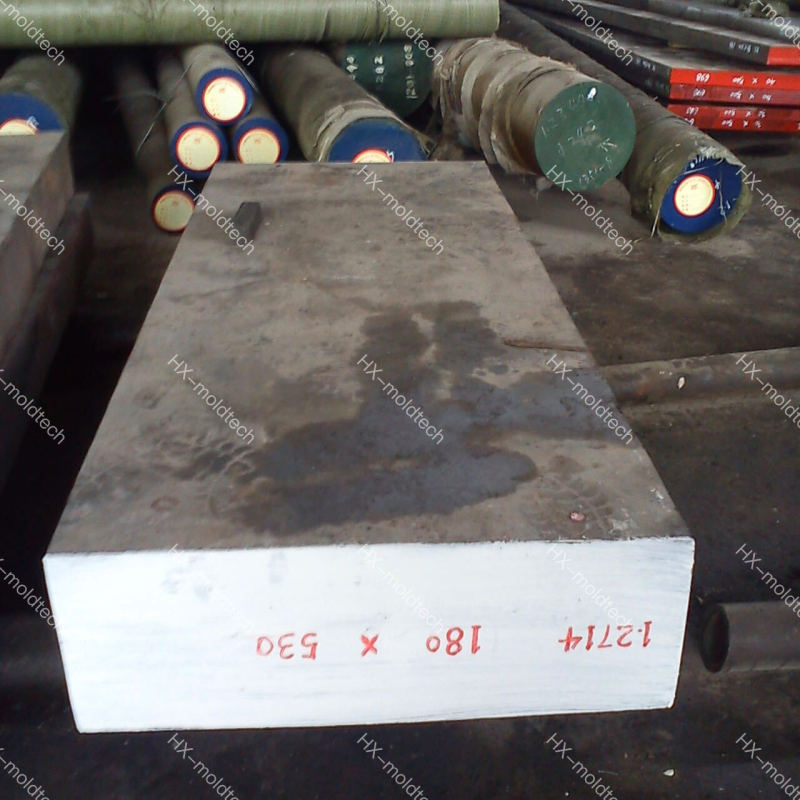

DIN 1.2714(55NiCrMoV7) Hot Worked Tool Steel
The main usage is :
1. Forging dies
2. Extrusion dies
3. Punches and dies for cold and hot working
4. Injection molding components
5. Machine components subject to heavy wear and impact
- HONGXIN
- DAYE
- 30 DAYS
- 8000 TON/MONTH
- Information
DIN 1.2714(55NiCrMoV7) Hot Worked Tool Steel
1: DIN 1.2714(55NiCrMoV7) steel introduction
DIN 1.2714 is highly recommendable for Close Die Forgings due to its characteristics of high wear-resistance, extra toughness , high hardness which is achieved with Cr-Ni-Mo-V high graded alloys.
DIN 1.2714 tools steel are used in various application such as hot punches, hot shear blades, froging dies, die casting dies, hot gripper dies and extrusion tooling, etc..
2: DIN 1.2714 Steel equivalent
| Country | China | Japan | Germany | USA | UK |
| Standard | GB/T 1299 | JIS G4404 | DIN EN ISO4957 | ASTM A681 | BS 4659 |
| Grade | 5CrNiMoV | 1.2714 | 6F3 |
3: DIN 1.2714 steel chemical composition
| Grade | C | Si | Mn | P | NI | Cr | V | Mo | |||||||
| DIN 1.2714 | 0.50 | 0.60 | 0.10 | 0.40 | 0.65 | 0.95 | 0.03 | 1.50 | 1.80 | 1.00 | 1.20 | 0.07 | 0.12 | 0.45 | 0.55 |
| ASTM 6F3 | 0.50 | 0.60 | 0.10 | 0.40 | 0.65 | 0.95 | 0.03 | 1.50 | 1.80 | 1.00 | 1.20 | 0.07 | 0.12 | 0.45 | 0.55 |
4: DIN 1.2714 steel mechanical properties
The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.
5: DIN 1.2714 steel overviews
| Size | Round | Dia 12-500mm | |
| Plate/Flat/Block | Thickness 8mm-300mm | ||
| Width 210mm-710mm | |||
| Process | EAF+LF+VD+Forged+Heat treatment(optional) | ||
| Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | ||
| Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | ||
| Delivery condition | Forged; Hot rolled; Cold drawn | ||
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | ||
| Payment terms | T/T;L/C;/Money gram/ Paypal | ||
| Trade terms | FOB; CIF; C&F; etc.. | ||
| Packing | Standard Packages, or as Customers Request | ||
| Delivery time | 30-45 days | ||
| Application | DIN 1.2714 tool steel are suitable for the cutting tool, cold/heat distortion mould and measuring implements, and further to manufacture the piston, valve, valve seat of fuel pump of diesel engine, Cutting tools, Mechanical parts, Air hammer tools, Piercing tools. | ||
6: Heat treatment
The preheating of measuring and cutting tool steel is spheroidizing annealing, final heat treatment is quenching + low temperature tempering and hardness after heat treatment can reach 60~65HRC. When heat treat tool steel grades consideration should be given to hardening temperature, including ratio of heating, cooling and soaking times which will differ due to factors such as the shape and size of each chemical component. Other considerations during heat treatment include the type of furnace, quenching medium and work piece transfer facilities.
7: Features and classifications
Hot-work die divides into several main types, such as hammer forging, die forging, extrusion and die casting, including hot forging die, press machine forging die, stamping die, hot-extrusion die, metal die-casting mould. Heat distortion mould not only supports huge mechanical stress, but also thermal stress during working repeatedly. Hot-work die steel should have not only high hardness, red hardness, abrasion resistance, toughness, but also have excellent high temperature strength, thermal fatigue stability, thermal conductivity, upper harden-ability for guaranteeing the whole cross section with consistent mechanical property.
8: Delivery condition
For hot forged or hot rolled bar, usually the delivery condition is hot forged or rolled, annealed, rough turned.

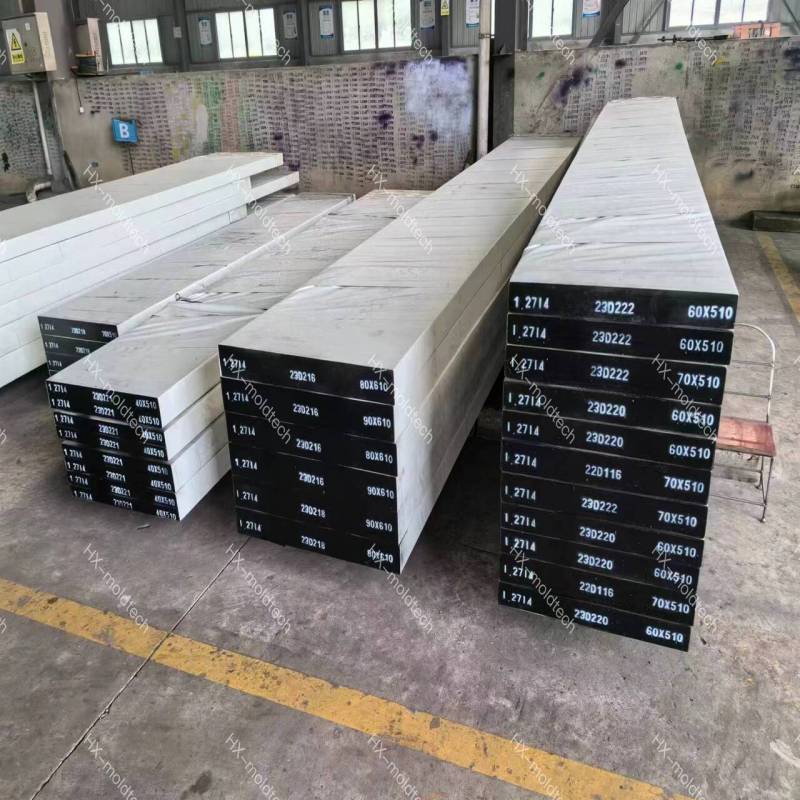

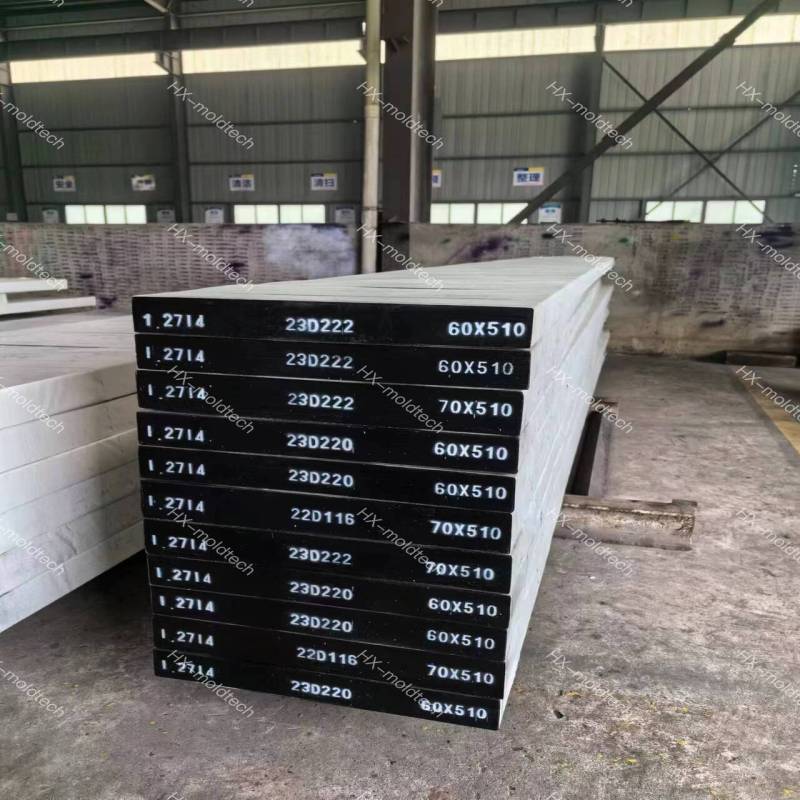

For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface.

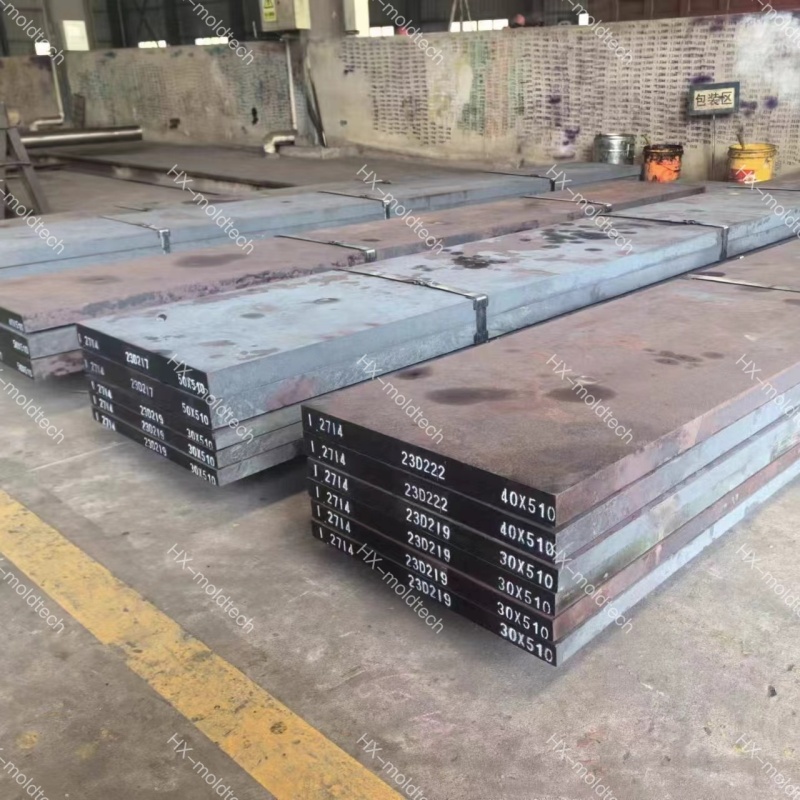

For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.
Hongxin Mold Tech Co.,Ltd. owns 1 set of Hot Rolling Production Line at size range flats 8-80*210-710mm, rounds 16-50mm Dia.
12 sets of Hydraulic Forging Hammers from Power 560kgs to 6000kgs which could cover flats 40-300*210-710mm.
8 sets of EF+LF+VD
5 sets of ESR
9 sets of Milling Machines
10 sets of Turning Lathes
6 sets of Precision Milling Machines.
CERTIFICATION: GB/T19001-2016/ISO9001:2015
Products' List
Q1:Are you trading company or manufacturer ?
We are the biggest tool steel factory at Daye & Huangshi. We can provide a wide range of steel products.
Q2:What is alloy steel round bar export packing?
Usually bundling for large diameter,small diameter bars in bulk or as customer's demand.
Q3.What is your MOQ?
We accept small order,if it is stock,any quantities can be accepted.
Q4.What is your lead time?
Depends actual order,around 20-35 days,or negotiation.
Q5.Can you supply sample?
Yes,we can.Sample fee according to your size.
Q6:What certificates do you have?
ISO, ABS, BV, CCS, Dnv, Lr, Gl, Mill Certificate
Q7: How can I get your quotation as soon as possible?
The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement,we will work out a best price soon.
