DIN 1.2355(50CrMoV13-15) Hot Worked Mold Steel

DIN 1.2355 is a tool steel grade that is commonly used in the production of cutting tools, dies, and molds. It has high wear resistance, good toughness, and excellent polishability, making it suitable for applications where high precision and durability are required. DIN 1.2355 is often used in the manufacturing industry for forming and cutting operations, such as stamping, blanking, and shearing. It can also be used in the production of plastic injection molds, extrusion dies, and cold heading tools. Overall, DIN 1.2355 is a versatile tool steel grade that offers a good balance of properties for a wide range of applications.

  • HONGXIN
  • DAYE
  • 30 DAYS
  • 8000 TON/MONTH
  • Information
Product Description

 DIN 1.2355(50CrMoV13-15) Hot Worked Mold Steel

1.2355

 1: DIN 1.2355(50CrMoV13-15) steel introduction

    DIN 1.2355(50CrMoV13-15)  tool steel is a shock-resistant air hardening steel. DIN 1.2355(50CrMoV13-15)  steel has exceptional impact properties plus the highest hardenability of shock resisting grades of tool steel. Steel DIN 1.2355(50CrMoV13-15)  also possesses good softening resistance at high temperatures which gives it hot work capabilities. Since DIN 1.2355(50CrMoV13-15)  steel hardens in air, it is also safe and stable in heat treatment.

   DIN 1.2355(50CrMoV13-15)  tools steel has an unusual combination of properties, making it suitable for an extremely wide range of tool and die work - where shock-resistance, medium hot-work properties, or ease of machining and heat-treatment are most important.



2: DIN 1.2355(50CrMoV13-15)  Steel equivalent

CountryChinaJapanGermanyUSAUK
StandardGB/T 1299JIS G4404DIN EN ISO4957ASTM A681BS 4659
Grade  1.2355/50CrMoV13-15S7/T41907


3: DIN 1.2355(50CrMoV13-15)  steel chemical composition

GradeCSiMnPSCrVMo
S7/T419070.450.550.201.000.200.900.030.033.003.50-0.351.301.80
1.2355/
50CrMoV13-15
0.450.550.200.800.500.900.030.023.003.500.150.351.301.70


4: DIN 1.2355(50CrMoV13-15)  steel mechanical properties

    The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.



5: DIN 1.2355(50CrMoV13-15)  steel overviews



SizeRoundDia 12-500mm
Plate/Flat/BlockThickness
8mm-500mm

Width
210mm-710mm

ProcessEAF+LF+VD+Forged+Heat treatment(optional)
Heat treatmentNormalized ; Annealed ; Quenched ; Tempered
Surface conditionBlack; Peeled; Polished; Machined; Grinded; Turned; Milled
Delivery conditionForged; Hot rolled; Cold drawn
TestTensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc.
Payment termsT/T;L/C;/Money gram/ Paypal
Trade termsFOB; CIF; C&F; etc..
PackingStandard Packages, or as Customers Request
Delivery time30-45 days



6. DIN 1.2355(50CrMoV13-15)  Tool Steel Heat Treatment

Annealing

    Anneal in a protective atmosphere. Heat rapidly to 1500 to 1550℃ and hold at that temperature for one and one-half hours for each inch of greatest thickness. To obtain best machining properties, cool slowly to 1000℃ and then air-cool. This annealing procedure should produce a hardness of Brinell 197 max.
Stress Relief S7 steel Material: When desirable to relieve the strains of machining, heat slowly to 1050℃-1250℃;allow to equalize, then cool in air.

Hardening

    Preheat: Warm steel S7 slightly before charging into the preheat furnace 1200℃;-1300℃;prior to hardening.

Harden: 1750℃;Quench S7 tool steel in air if cross section is 2-1/2″ or smaller; sections 2-1/2″ to 6″ should be oil quenched to black (1000℃) followed by air cooling to 150℃;Larger cross sections of S7 steel should be oil quenched to 150℃.

    Quench: Quench in still air or dry air blast.

    Temper: Tool steel S7 is normally tempered one hour per inch of section thickness to desired heating rate of 2 hours per inch. Cool in air to room temperature between the two tempers. The tempering temperature varies according to the intended use. Suggested: For cold-working and similar applications, the recommend 400℃-500℃;Hot working applications: apply a tempering temperature of 900℃-1000℃;Never temper at less than 400℃.



7: Delivery condition

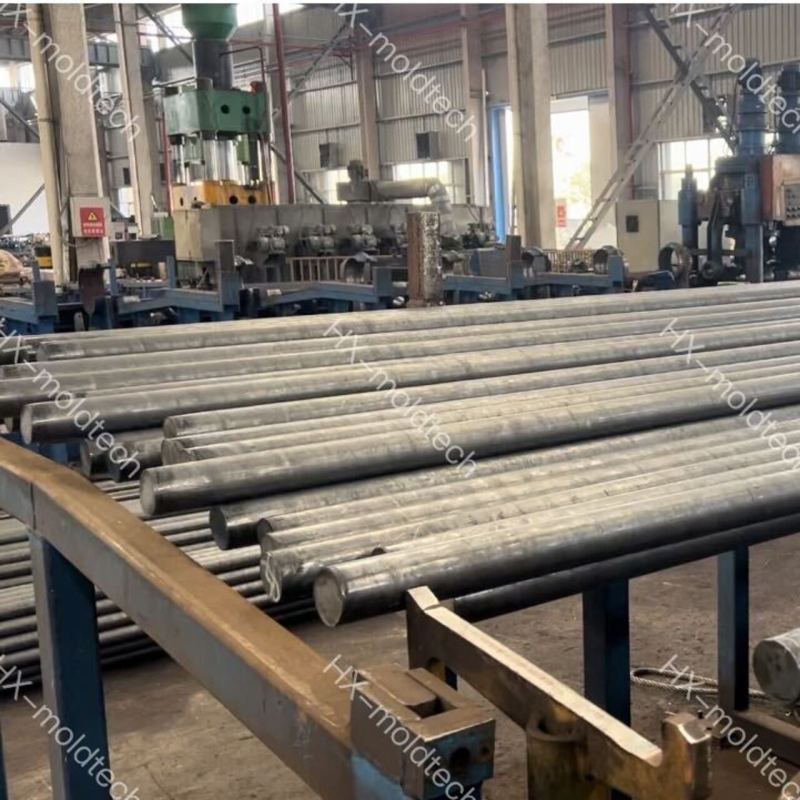

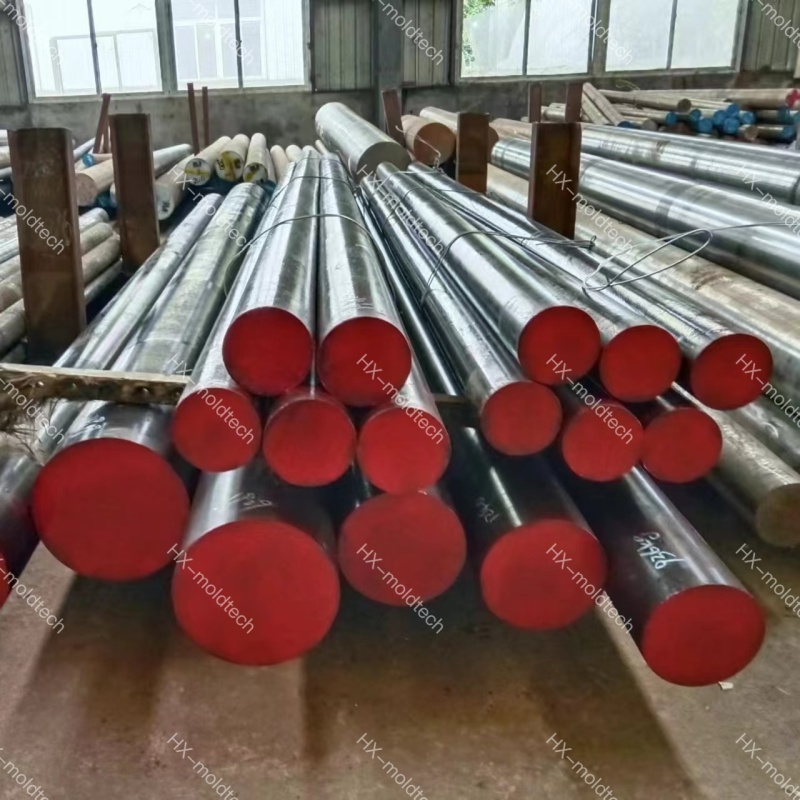

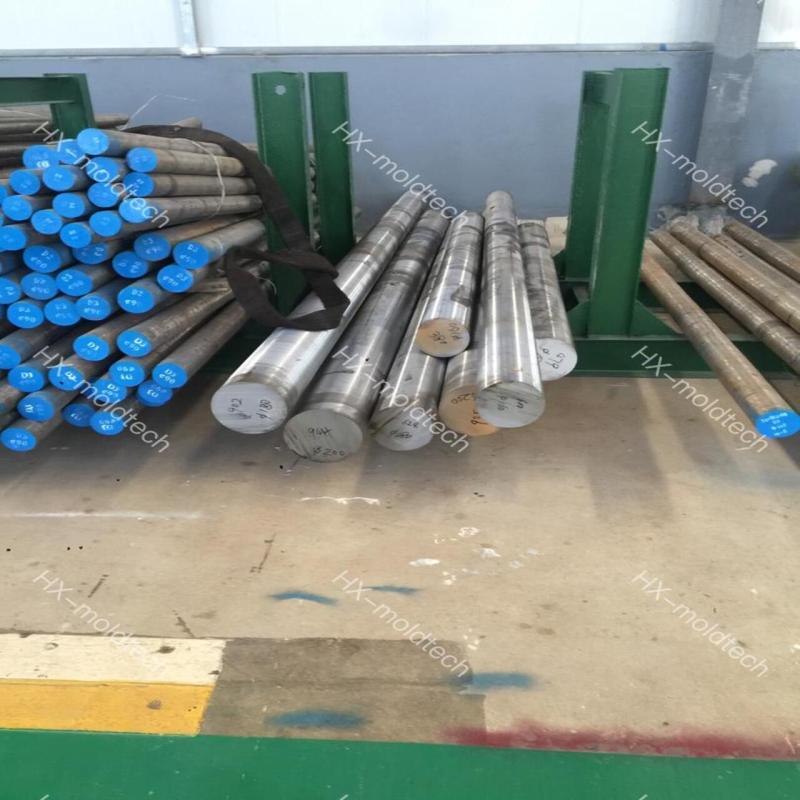

    For hot forged or hot rolled bar, usually the delivery condition is hot forged or rolled, annealed, rough turned.

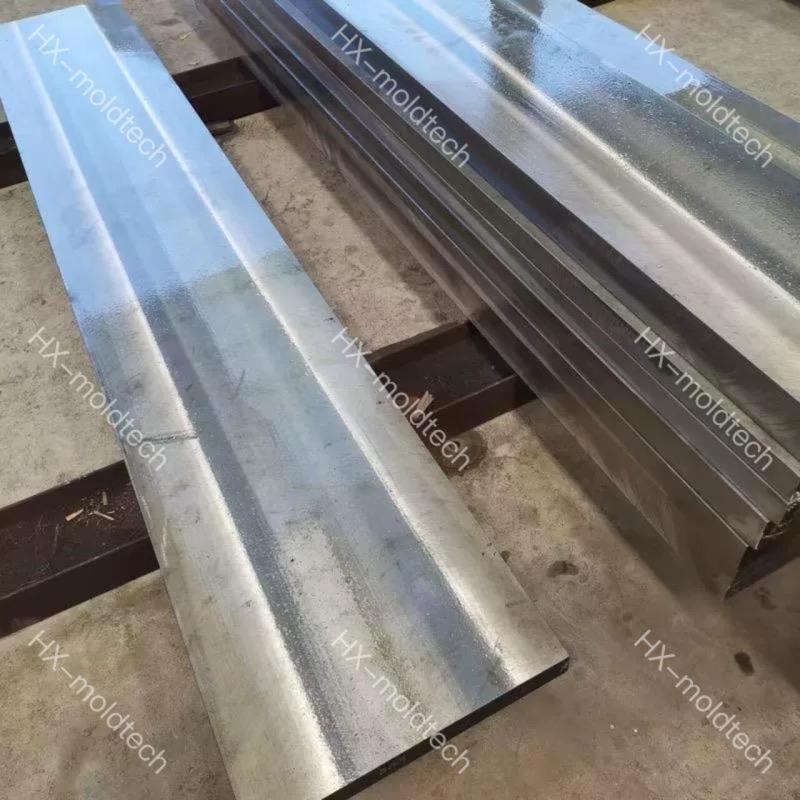

    For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface.

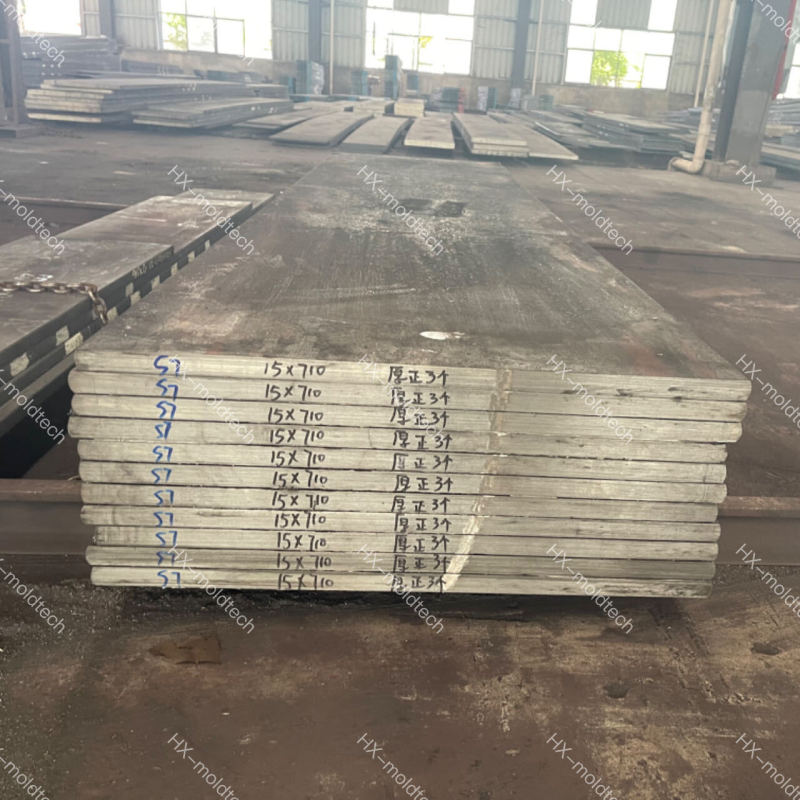

    For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.

1.2355 steel



1.2355

Hongxin Mold Tech Co.,Ltd. owns 1 set of Hot Rolling Production Line at size range  flats 8-80*210-710mm, rounds 16-50mm Dia.

12 sets of Hydraulic Forging Hammers from Power 560kgs to 6000kgs which could cover flats 40-300*210-710mm.

8 sets of EF+LF+VD

5 sets of ESR

9 sets of Milling Machines

10 sets of Turning Lathes

sets of Precision Milling Machines.

1.2355 steel

1.2355 material

1.2355

CERTIFICATION: GB/T19001-2016/ISO9001:20151.2355 steel

Products' List1.2355 material



Packaging&Shipping

1.2355



1.2355 steel



Q1:Are you trading company or manufacturer ?
We are the biggest tool steel factory at Daye & Huangshi. We can provide a wide range of steel products.

Q2:What is alloy steel round bar export packing?

Usually bundling for large diameter,small diameter bars in bulk or as customer's demand.

Q3.What is your MOQ?

We accept small order,if it is stock,any quantities can be accepted.

Q4.What is your lead time?

Depends actual order,around 20-35 days,or negotiation.

Q5.Can you supply sample?

Yes,we can.Sample fee according to your size.

 Q6:What certificates do you have?

ISO, ABS, BV, CCS, Dnv, Lr, Gl, Mill Certificate

Q7: How can I get your quotation as soon as possible?
The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement,we will work out a best price soon.
