AISI O1/DIN 1.2510 Cold Work Tool Steel
AISI O1 Oil-Hardening Tool Steel
AISI O1 tool steel excels in wear resistance and machinability, ideal for precision cutting tools, cold work dies, and engraving blades. Its high carbon-tungsten composition ensures sharp edge retention under demanding operations.
Heat Treatment & Performance
Oil-quenched AISI O1 achieves 60-64 HRC with minimal distortion, perfect for stamping dies and woodworking chisels. Double tempering enhances dimensional stability, extending tool lifespan in high-stress applications.
Cost-Effective Versatility
AISI O1’s superior grindability and polishability reduce fabrication costs, making it a top choice for gauges, fixtures, and small-batch production tools requiring precision and durability.
- HONGXIN
- 中国
- 30DAYS
- 8000TONS/MONTH
- Information
AISI O1/DIN 1.2510 Cold Work Tool Steel
1.AISI O1 steel introduction
AISI O1 is a high-performance oil-quenchable tool steel that exhibits excellent wear resistance, cutting edge retention and machining ease due to its high carbon (0.85-1.00%) and tungsten (0.40-0.60%) content. It can be oil-quenched to a stable hardness of 60-64 HRC with minimal deformation, making it suitable for precision cold working dies, stamping tools and woodworking tools. Its excellent polishability and economy make it the first choice for small batch production and high-precision measuring instruments (such as gauges and fixtures). AISI O1 tool steel combines durability, easy processing and cost-effectiveness, making it a reliable and versatile material in industrial manufacturing.
2. AISI O1 Tool Steel Supply Range

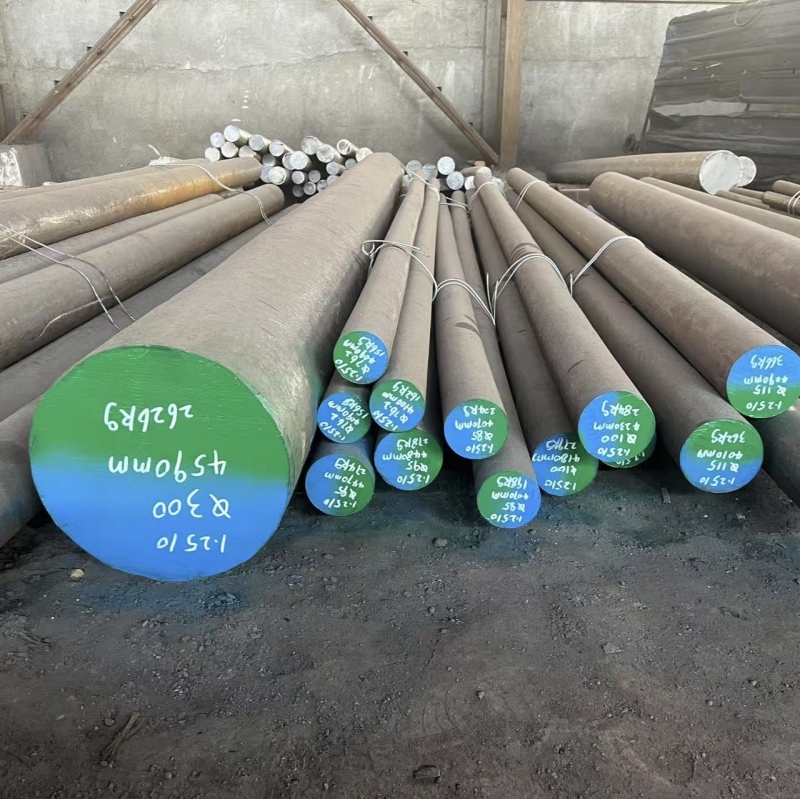

| Size | Round | Dia 8-350mm |

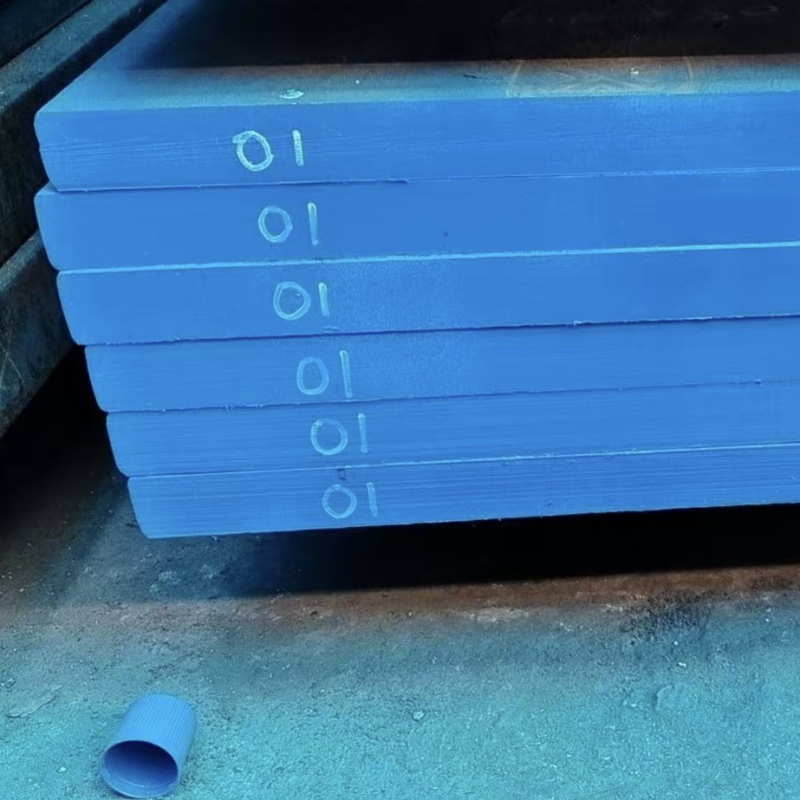

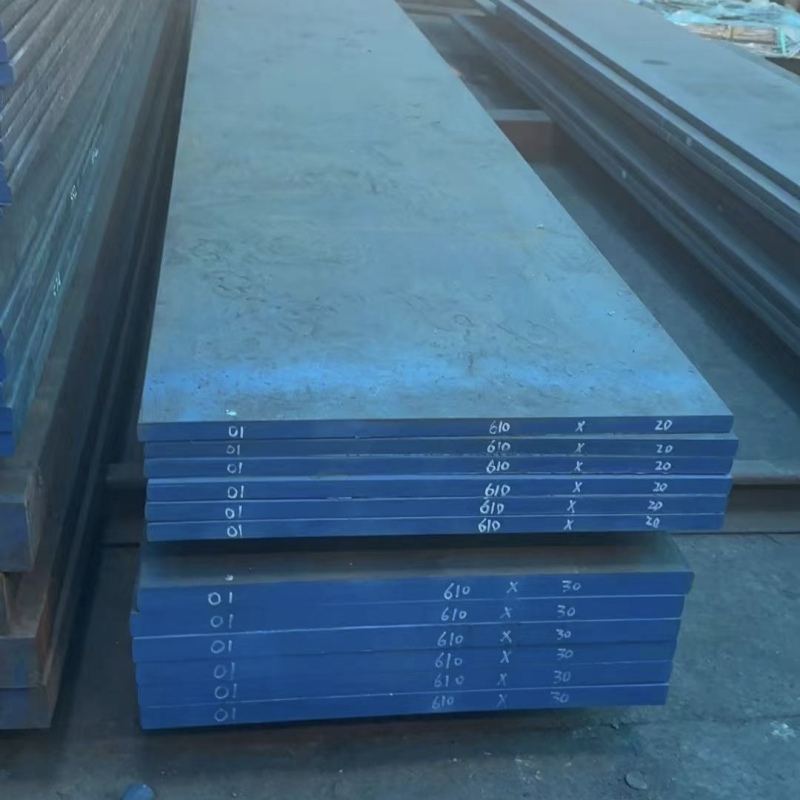

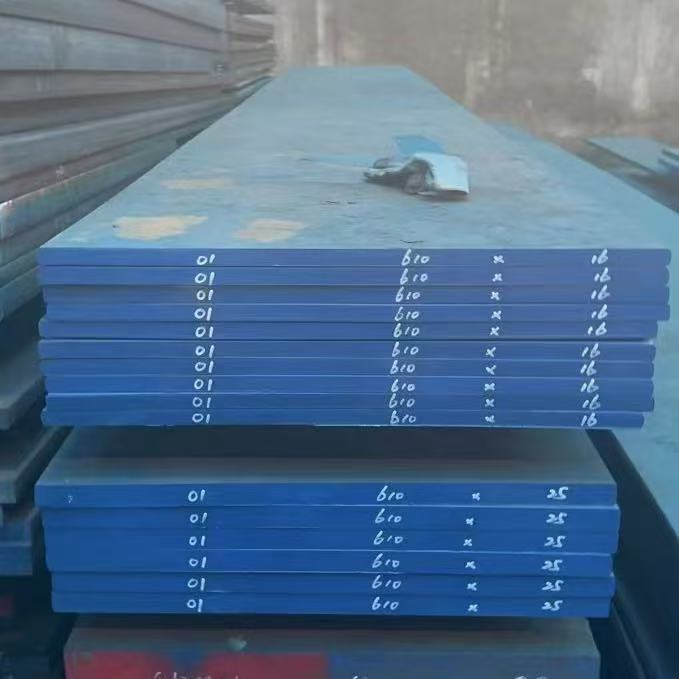

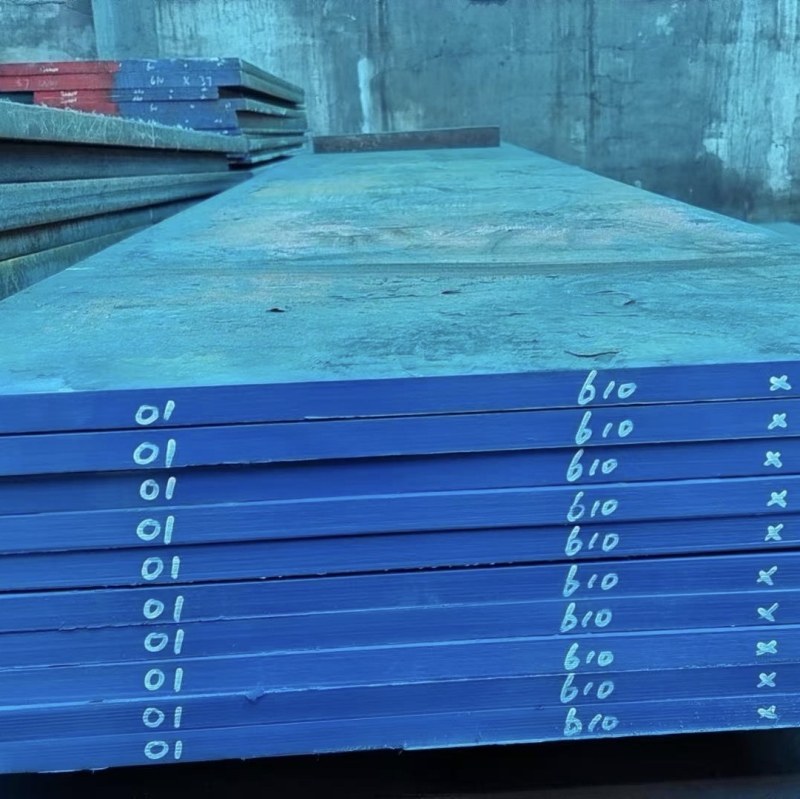

| Plate/Flat/Block | Thickness 2mm-300mm | |
| Width 200mm-800mm |
3. AISI O1 Tool Steel Standards & Global Equivalents
| Grade | C | Si | Mn | P | S | Cr | V | Mo | W |
| AISI/O1 | 0.85-1.0 | 0.1-0.5 | 1.0-1.4 | 0.03 | 0.03 | 0.4-0.7 | 0.3 | / | 0.4-0.6 |
| DIN/1.2510 | 0.9-1.05 | 0.15-0.35 | 1.0-1.2 | 0.03 | 0.03 | 0.5-0.7 | 0.05-0.15 | / | 0.5-0.7 |
| JISG/SKS3 | 0.9-1.0 | 0.35 | 0.9-1.2 | 0.03 | 0.03 | 0.5-1.0 | / | / | 0.5-1.0 |
4. AISI O1 Tool Steel Physical & Mechanical Properties
Physical Properties
| Property | Metric Units | Imperial Units |
|---|---|---|
| Density | 7.85 g/cm³ | 0.284 lb/in³ |
| Melting Point | ~1425°C | ~2600°F |
| Thermal Expansion (20-200°C) | 11.7×10⁻⁶/°C | 6.5 µin/in·°F |
| Thermal Conductivity (100°C) | 42.0 W/m·K | 291 in·lb/(hr·ft²·°F) |
Mechanical Properties
| Property | Metric Units | Imperial Units |
|---|---|---|
| Hardness (Quenched & Tempered) | 60-64 HRC | 60-64 HRC |
| Tensile Strength | 1800-2000 MPa | 261,000-290,000 psi |
| Impact Toughness (Charpy) | 15-25 J | 11-18 ft-lb |
5. AISI O1 Tool Steel Heat Treatment
Annealing: Heat AISI O1 steel to 760-790°C (1400-1450°F), hold for 2 hours, then slow cool at ≤10°C/h. Final hardness: ≤212 HB.
Quenching: Oil quench from 800-830°C (1472-1526°F) for optimal hardness.
Tempering: Temper AISI O1 at 150-200°C (302-392°F) for 1-2 hours to achieve 60-64 HRC. Double tempering recommended for dimensional stability.
6. AISI O1 Tool Steel Applications
AISI O1 steel is a top choice for precision tooling due to its exceptional machinability and wear resistance:
Cutting Tools: Blades, drills, and precision engraving tools.
Cold Work Dies: Blanking dies, forming dies, and stamping tools.
Measuring Instruments: Gauges, fixtures, and high-precision molds.
Woodworking Tools: Chisels, plane blades, and carving tools.
Why Choose AISI O1?
Superior grindability and polishability compared to high-alloy steels.
Cost-effective for small to medium-batch production.
7. Key Advantages of AISI O1 Steel
Machinability: AISI O1 steel is easy to machine in the annealed state, reducing tool wear during fabrication.
Uniform Hardness: Oil quenching ensures minimal distortion and consistent hardness.
Versatility: Suitable for both intricate tools and heavy-duty dies.
8. Delivery condition
For hot forged bar, usually the delivery condition is hot forged, annealed rough turned/Black surface.
For hot rolled bar, usually the delivery condition is hot rolled, annealed, Black surface.
For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface
For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.
Hongxin Mold Tech Co.,Ltd. owns 1 set of Hot Rolling Production Line at size range flats 8-80*210-710mm, rounds 16-50mm Dia.
12 sets of Hydraulic Forging Hammers from Power 560kgs to 6000kgs which could cover flats 40-300*210-710mm.
8 sets of EF+LF+VD
5 sets of ESR
9 sets of Milling Machines
10 sets of Turning Lathes
6 sets of Precision Milling Machines.
CERTIFICATION: GB/T19001-2016/ISO9001:2015
