1.2746(45NiCrMoV16-6) Cold Worked Mold Steel

The usage is as follows:
1. Cutting tools: DIN 1.2746 is often used to make cutting tools such as drills, end mills, and reamers due to its high hardness and wear resistance.
2. Molds: The excellent toughness of DIN 1.2746 makes it a popular choice for making injection molds, die casting molds, and other types of molds that require high strength and durability.
3. Precision components: DIN 1.2746 is also used to make various precision components such as gears, shafts, and bearings that require high wear resistance and strength.

  • HONGXIN
  • DAYE
  • 30 DAYS
  • 8000 TON/MONTH
  • Information
Product Description

1.2746(45NiCrMoV16-6) Cold Worked Mold Steel

1.2746



 1:  1.2746 (45NiCrMoV16-6)  steel introduction
 1.2746 (45NiCrMoV16-6) steel is an alloyed cold work tool steel. It is a widely used material in various industrial applications. This steel type has high hardness and can withstand challenging conditions such as wear, impact, and high temperatures. Due to its excellent mechanical and thermal stability at elevated temperatures (500-600 °C), 1.2746 (45NiCrMoV16-6) steel is particularly preferred for components operating at high temperatures.

1.2746 (45NiCrMoV16-6) steel offers good machinability when properly processed. Its resistance to deformation or softening at high temperatures during processing helps to reduce the risks.

21.2746 (45NiCrMoV16-6)  steel chemical composition

C%

Si%

Mn%

P%

max

S%

max

Cr%

Mo%

Ni%

V%

0,41-0,49

0,15-0,35

0,60-0,80

0,025

0,020

1,40-1,60

0,73-0,85

3,80-4,20

0,45-

0,55

31.2746 (45NiCrMoV16-6)  steel mechanical properties


Tempering table values at room temperature on Ø 25 mm after quenching at  900°C in oil

HB

577

560

543

525

512

496

482

468

455

442

421

HRC

56

55

54

53

52

51

50

49

48

47

45

R N/mm2

-

-

-

-

-

1760

1700

1640

1580

1560

1460

Tempering      °C

100

150

200

250

300

350

400

450

500

550

600



































Thermal expansion



10-6 ●  K-1



11.9

12.7

13.2

13.6

13.8

13.9



Modulus of elasticity long.       GPa                        210

Modulus of elasticity tang.       GPa                        80

Specific heat capacity              J/(Kg●K)                    500          477

Thermal conductivity                W/(m●K)                                    42.5

Density                                      Kg/dm3                                 7.90

Specific electric resist.            Ohm●mm2/m            0.70

Electrical conductivity              Siemens●m/mm2         1.42

°C                                                                                 20             100           200            300           400            500           600

The symbol ►indicates temperature between 20 °C and 100 °C, 20 °C and 200 °C …





































Europe

Germany

China

Japan

India

R. of Korea        Russia

USA

EN

DIN

GB

JIS

IS

KS                             GOST

     AISI/SAE



45NiCrMoV16-6



4:1.2746 (45NiCrMoV16-6) steel overviews

SizeRoundDia12-500mm
Plate/Flat/BlockThickness
12mm-500mm

Width
210mm-710mm

ProcessEAF+LF+VD+Forged+Heat treatment(optional)
Heat treatmentNormalized ; Annealed ; Quenched ; Tempered
Surface conditionBlack; Peeled; Polished; Machined; Grinded; Turned; Milled
Delivery conditionForged; Hot rolled; Cold drawn
TestTensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc.
Payment termsT/T;L/C;/Money gram/ Paypal
Trade termsFOB; CIF; C&F; etc..
PackingStandard Packages, or as Customers Request
Delivery time30-45 days
Application AISI A2 is suitable for applications such as Blanking dies, block and ring gauges, coining, cold forming, cold trimming and forming dies, cold shears, rolls, knurls and knurling tools, machine parts, mandrels, punches and punch plates, reamers, shear and slitter blades, stamping dies and threading tapes.



5: Heat Treatment

Temperature °C

Hot-forming               Stress-relieving

annealing 1)

1)  Annealing must

be done after machining and before quenching

Quenching +Q

Tempering +T

1050-900

followed by   slow cooling

650 furnace cooling

to 350, thenair


heating up to 640-





660 pause, then 8






80-910


air, oil, polymer,

b.t. 180-220, fluid-bed (HRC 56)

immediately




after quench





ing 160-250






air



or

250-600


see tempering table

Soft

Stress-relieving

Pre-heating

Stress-relieving

annealing +A

+SR

welding

after welding

610-650

50° under the

350

550 furnace cooling

controller cooling in the furnace (HB max 295)

temperature  of tempering

AC1                       AC3

MS                         Mf



730 *                  780 *

230 *                  10 *

b.t. hot-bath.   * calculated with formula

6: Delivery condition
    For hot forged or hot rolled bar, usually the delivery condition is hot forged or rolled, annealed, rough turned.
    For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface.

    For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.

45nicrmov16 6



45nicrmov16 6



Hongxin Mold Tech Co.,Ltd. owns 1 set of Hot Rolling Production Line at size range  flats 8-80*210-710mm, rounds 16-50mm Dia.

12 sets of Hydraulic Forging Hammers from Power 560kgs to 6000kgs which could cover flats 40-300*210-710mm.

8 sets of EF+LF+VD

5 sets of ESR

9 sets of Milling Machines

10 sets of Turning Lathes

sets of Precision Milling Machines.

1.2746

1.2746 steel

45nicrmov16 6

 CERTIFICATION: GB/T19001-2016/ISO9001:20151.2746

Products' List1.2746 steel

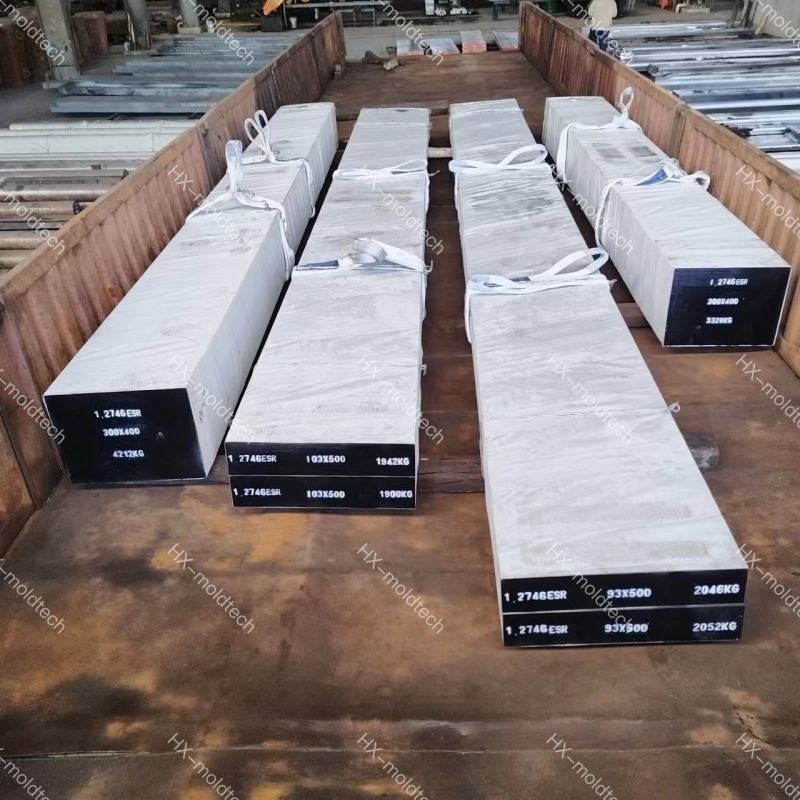

Packaging&Shipping

1.2746



45nicrmov16 6



Q1:Are you trading company or manufacturer ?
We are the biggest tool steel factory at Daye & Huangshi. We can provide a wide range of steel products.

Q2:What is alloy steel round bar export packing?

Usually bundling for large diameter,small diameter bars in bulk or as customer's demand.

Q3.What is your MOQ?

We accept small order,if it is stock,any quantities can be accepted.

Q4.What is your lead time?

Depends actual order,around 20-35 days,or negotiation.

Q5.Can you supply sample?

Yes,we can.Sample fee according to your size.

 Q6:What certificates do you have?

ISO, ABS, BV, CCS, Dnv, Lr, Gl, Mill Certificate

Q7: How can I get your quotation as soon as possible?
The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement,we will work out a best price soon.
