DIN 44Mn28 Free Cutting Steel

Free cutting steel is a type of steel that is specifically designed to be easily machined or cut, making it ideal for applications where high productivity and efficiency are required. This type of steel typically contains higher levels of sulfur, lead, or other elements that help improve its machinability.
Free cutting steel is commonly used in the manufacturing of various components and parts, such as bolts, screws, gears, and shafts. Its excellent machinability allows for faster cutting speeds, reduced tool wear, and improved surface finish, resulting in cost savings and increased productivity.

  • HONGXIN
  • DAYE
  • 30 DAYS
  • 8000 TON/MONTH
  • Information
Product Description

DIN 44Mn28 Free Cutting Steel

DIN 44Mn28 STEEL



1: DIN 44Mn28 steel introduction

     ASTM1141 is high sulfur medium carbon free-cutting steel, which has better cutting performance. Compared with 45# steel, ASTM1141 can increase tool life by four times, increase productivity by 30%, and has higher strength and hardness.





2:DIN 44Mn28 steel equivalent

CountryChinaJapanGermanyUSA    UK
StandardGBJIS

DIN (W-Nr.)

EN 10277

AISI/ASTM

BS

970-3-1991

GradeY40MnSUM4344Mn281141/1144



3: DIN 44Mn28 steel chemical composition

GradeCMnPS
1141/11440.37-0.451.35-1.650.040.08-0.13
SUM430.37-0.451.20-1.550.050.20-0.30
Y40Mn0.37-0.451.20-1.550.040.20-0.30



4: DIN 44Mn28 steel mechanical properties

    The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.



5: DIN 44Mn28 steel overviews

SizeRoundDia 12-500mm
Plate/Flat/BlockThickness
8mm-300mm
Width
210mm-710mm
Heat treatmentNormalized ; Annealed ; Quenched ; Tempered
Surface conditionBlack; Peeled; Polished; Machined; Grinded; Turned; Milled
Delivery conditionForged; Hot rolled; Cold drawn
TestTensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc.
Payment termsT/T;L/C;/Money gram/ Paypal
Trade termsFOB; CIF; C&F; etc..
Delivery time30-45 days
Application ASTM 1141 is suitable for machining parts requiring high rigidity, such as lead screw, polished rod, rack and spline shaft, etc.



7: Delivery condition
    For hot forged  bar, usually the delivery condition is hot forged, annealed/QT, rough turned/Black surface.
    For hot rolled bar, usually the delivery condition is hot rolled, annealed/QT, Black surface.
    For hot forged block, usually the delivery condition is hot forged, annealed/QT, milled surface/Black surface
    For hot rolled plate, usually the delivery condition is hot rolled, annealed/QT, black surface.
    For cold drawn bar, usually the delivery condition is cold drawn, annealed/QT, peeled/black surface

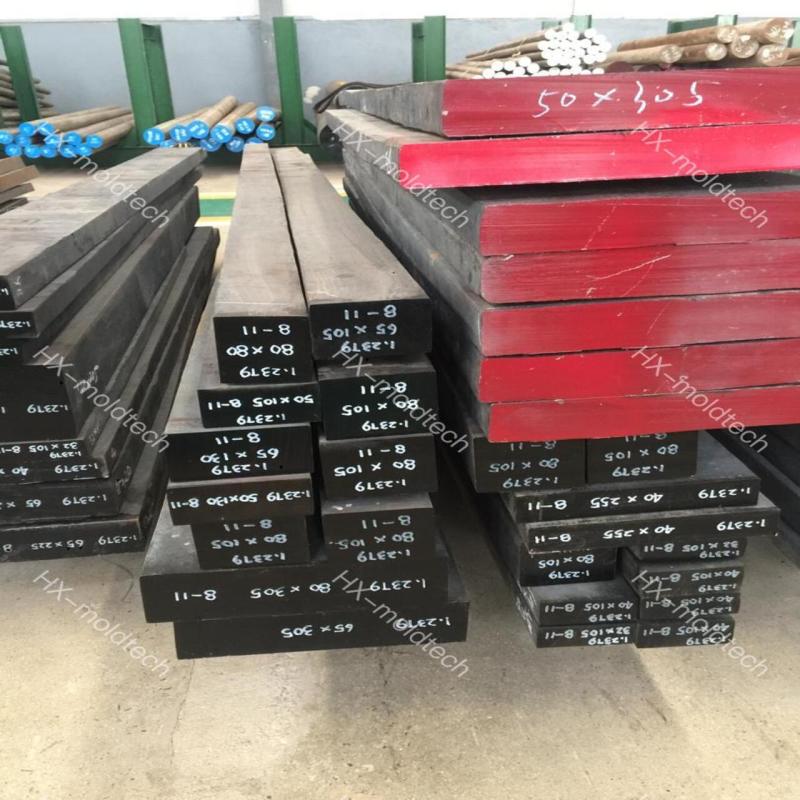

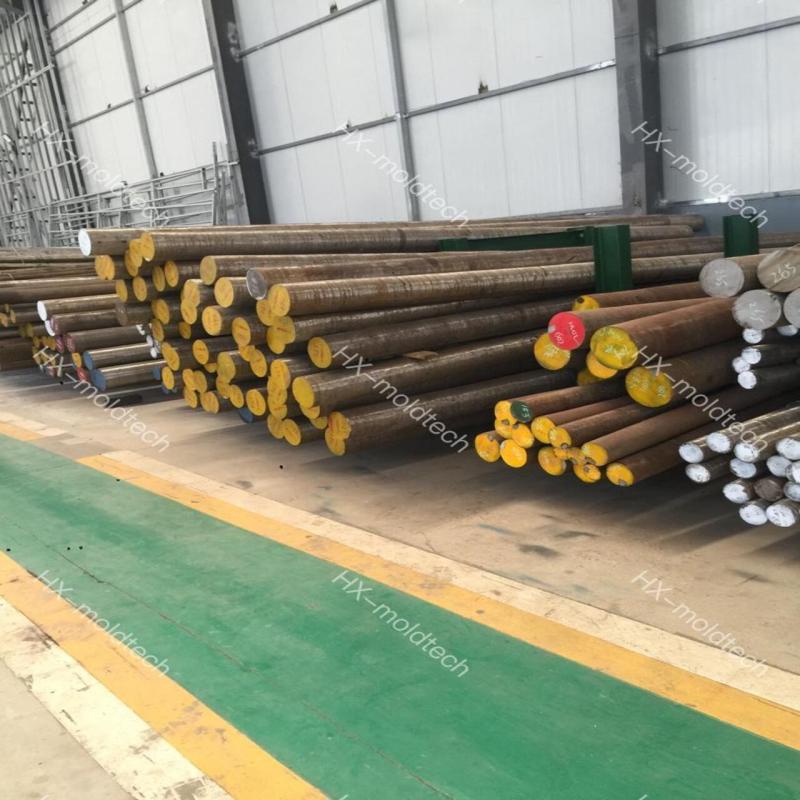

DIN 44Mn28 material

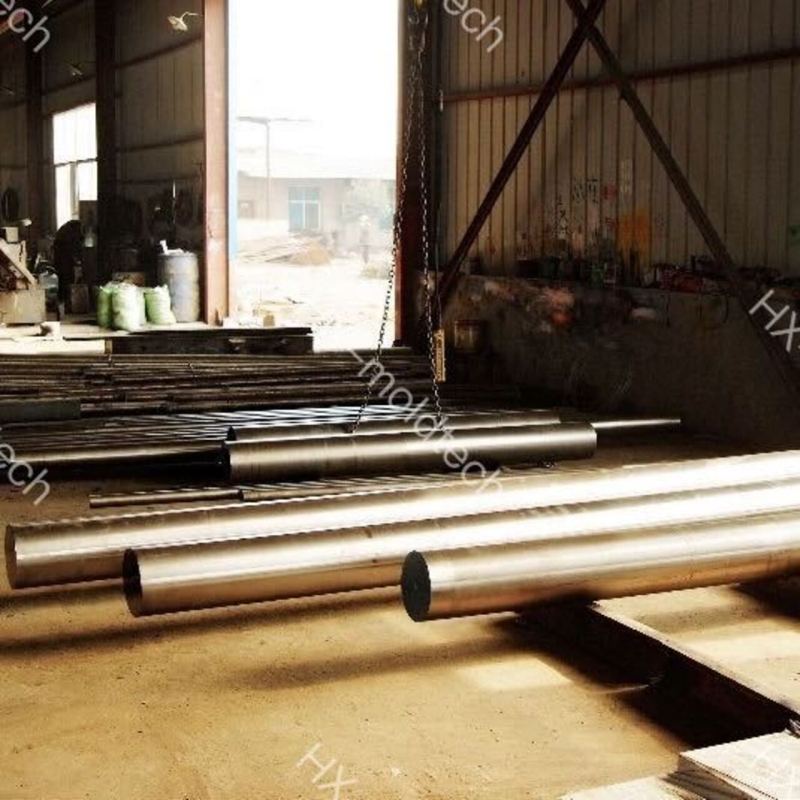

DIN 44Mn28 material

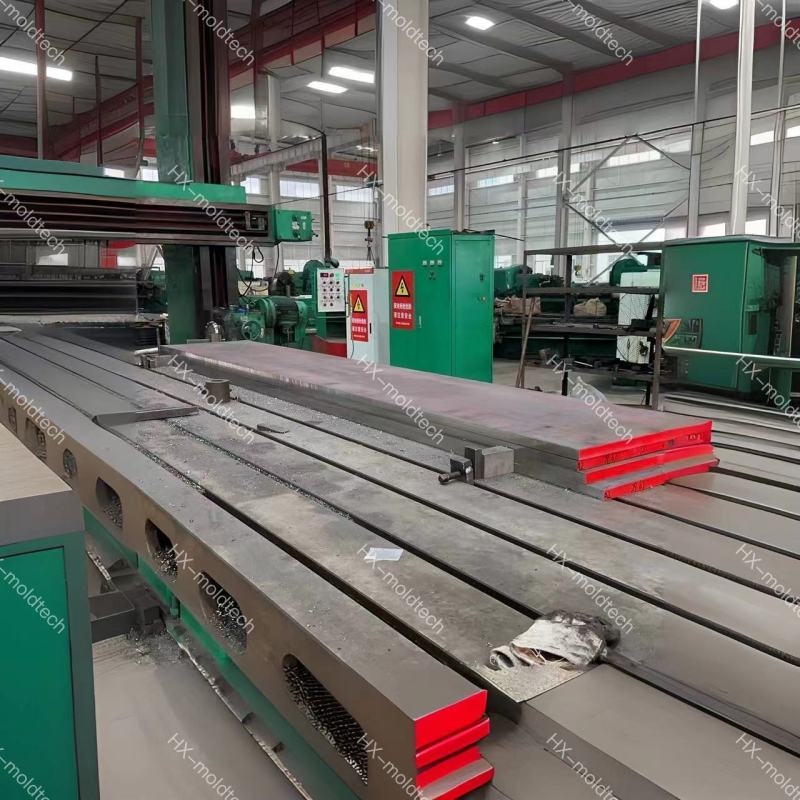

Hongxin Mold Tech Co.,Ltd. owns 1 set of Hot Rolling Production Line at size range  flats 8-80*210-710mm, rounds 16-50mm Dia.

12 sets of Hydraulic Forging Hammers from Power 560kgs to 6000kgs which could cover flats 40-300*210-710mm.

8 sets of EF+LF+VD

5 sets of ESR

9 sets of Milling Machines

10 sets of Turning Lathes

6 sets of Precision Milling Machines.

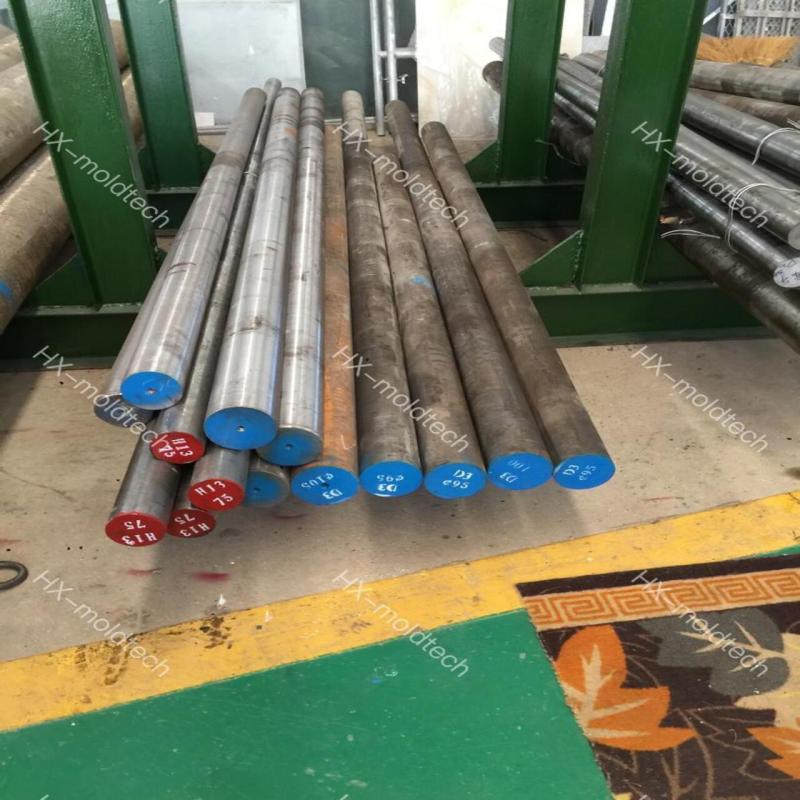

DIN 44Mn28

DIN 44Mn28 STEEL

DIN 44Mn28 material

CERTIFICATION: GB/T19001-2016/ISO9001:2015DIN 44Mn28

Products' ListDIN 44Mn28 STEEL



Packaging&Shipping

DIN 44Mn28 material



DIN 44Mn28 STEEL



Q1:Are you trading company or manufacturer ?
We are the biggest tool steel factory at Daye & Huangshi. We can provide a wide range of steel products.

Q2:What is alloy steel round bar export packing?

Usually bundling for large diameter,small diameter bars in bulk or as customer's demand.

Q3.What is your MOQ?

We accept small order,if it is stock,any quantities can be accepted.

Q4.What is your lead time?

Depends actual order,around 20-35 days,or negotiation.

Q5.Can you supply sample?

Yes,we can.Sample fee according to your size.

 Q6:What certificates do you have?

ISO, ABS, BV, CCS, Dnv, Lr, Gl, Mill Certificate

Q7: How can I get your quotation as soon as possible?
The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement,we will work out a best price soon.
