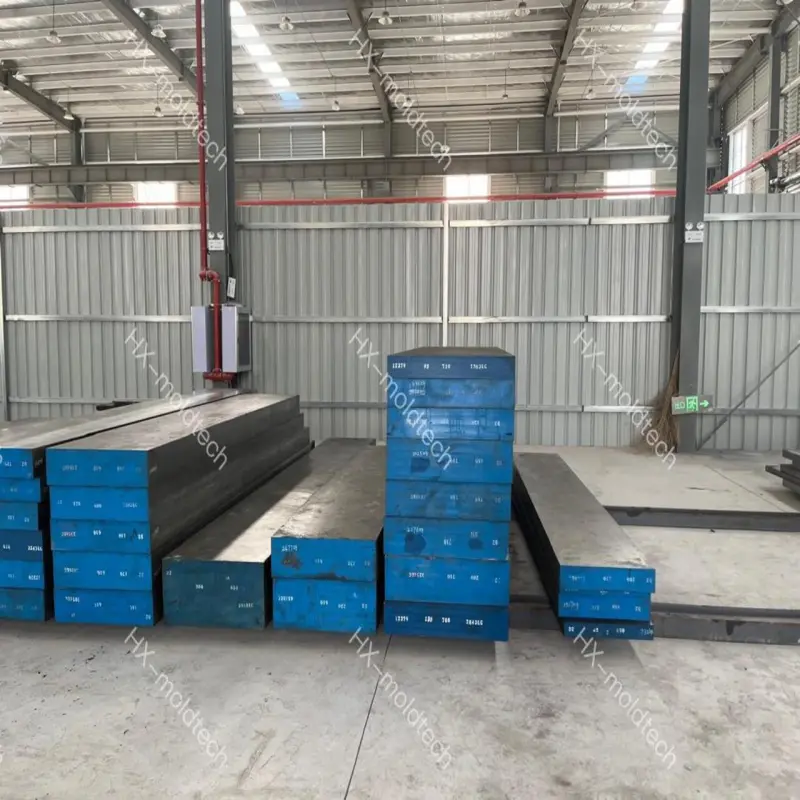

DIN1.2842 Cold Worked Tool Steel
Unmatched Edge Retention
DIN 1.2842’s high carbon and chromium content ensures superior edge sharpness and wear resistance, making it ideal for precision cutting tools like thread-rolling dies and shear blades. Its hardness (>61 HRC) outperforms many conventional cold work steels.
Minimal Distortion & High Machinability
The steel’s low annealing hardness (<229 HB) allows for easy machining and polishing. Its oil-hardening process minimizes warping, critical for tools requiring tight tolerances, such as measurement plates and mold inserts.
Versatile Industrial Adaptability
From paper-cutting blades to high-stress fixtures, DIN 1.2842 adapts to diverse applications. Its thermal stability (53 HRC at 400°C) ensures reliable performance in moderate high-temperature environments, reducing downtime and maintenance costs.
- HONGXIN
- 中国
- 30DAYS
- 8000TONS/MONTH
- Information
Comprehensive Guide to DIN 1.2842 Cold Work Tool Steel
1. DIN 1.2842 steel introduction
DIN 1.2842 is a high-carbon, high-chromium cold work tool steel renowned for its exceptional hardness (>61 HRC), wear resistance, and dimensional stability. Designed for precision tools and high-stress industrial components, it combines deep hardenability with minimal distortion during heat treatment. Applications range from blanking dies and shear blades to specialized cutting tools for leather and paper industries. Its balanced performance makes it a top choice for manufacturers requiring durability and precision in cold work environments。
| Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | |
| Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | |
| Delivery condition | Forged; Hot rolled; Cold drawn | |
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | |
| Payment terms | T/T;L/C;/Money gram/ Paypal | |
| Trade terms | FOB; CIF; C&F; etc.. | |
| Packing | Standard Packages, or as Customers Request | |
| Delivery time | 30-45 days | |
2. DIN 1.2842 Tool Steel Supply Range
| Size | Round | Dia 12-500mm | |
| Plate/Flat/Block | Thickness 8mm-300mm | ||
| Width 210mm-710mm | |||
| Process | EAF+LF+VD+Forged+Heat treatment(optional) | ||
3. DIN 1.2842 Tool Steel Chemical Composition& Global Equivalents
| Country | China | Japan | Germany | USA | UK |
| Standard | GB/T 1299 | JIS G4404 | DIN EN ISO4957 | ASTM A681 | BS 4659 |
| Grade | 9Mn2V | 1.2842 / 90MnCrV8 | O2 | B02 |
| Grade | C | Mn | P | S | Si | Cr | V | Mo | |||||
| O2 / T31502 | 0.85 | 0.95 | 1.40 | 1.80 | 0.03 | 0.03 | . . . | 0.50 | . . . | 0.50 | . . . | 0.30 | 0.30 |
| 1.2842 / 90MnCrV8 | 0.85 | 0.95 | 1.80 | 2.20 | 0.03 | 0.03 | 0.10 | 0.40 | 0.20 | 0.50 | 0.05 | 0.20 | . . . |
| B02 | 0.85 | 0.95 | 1.50 | 1.80 | 0.035 | 0.035 | . . . | 0.40 | . . . | . . . | . . . | 0.25 | . . . |
| 9Mn2V | 0.85 | 0.95 | 1.70 | 2.00 | 0.03 | 0.03 | . . . | 0.40 | . . . | . . . | 0.10 | 0.25 | . . . |
4. DIN 1.2842 Tool Steel Physical & Mechanical Properties
Physical Properties
| Property | Metric Units |
|---|---|
| Thermal Expansion | 11.7×10⁻⁶/°C |
| Thermal Conductivity | 25 W/(m·K) |
Mechanical Properties
| Property | Metric Units |
|---|---|
| Hardness (Quenched & Tempered) | >61 HRC |
| Tensile Strength | ≥1800 MPa |
| Impact Toughness (Charpy) | Moderate |
5. DIN 1.2842 Tool Steel Heat Treatment
Annealing: Soft annealing at 680-700°C, resulting in hardness <229 HB.
Quenching: Oil hardening at 780-800°C to achieve >61 HRC.
Tempering: Temper at 200-400°C to balance hardness (58-61 HRC) and toughness.
| 100℃ | 200℃ | 300℃ | 400℃ |
| 64HRC | 62HRC | 57HRC | 50HRC |
6. DIN 1.2842 Tool Steel Applications
DIN 1.2842 is widely used for precision tools and high-wear components:
Cutting Tools: Precision punches, shear blades, and thread-rolling dies.
Cold Work Dies: Blanking dies, forming molds, and slitting tools.
Industrial Components: Wear plates, guide rails, and high-stress fixtures.
Specialized Tools: Leather, paper, and tobacco cutting blades.
Why Choose DIN 1.2842?
Minimal distortion during heat treatment ensures dimensional stability.
High edge retention under cyclic loads, extending tool lifespan.
Key Advantages of DIN 1.2842 Steel
Exceptional Hardness & Wear Resistance: Achieves >61 HRC after quenching, ideal for abrasive environments.
Precision Machinability: Low annealing hardness (<229 HB) facilitates grinding and polishing for complex geometries.
Thermal Stability: Maintains hardness up to 53 HRC at 400°C, suitable for moderate high-temperature applications.
7. Delivery condition

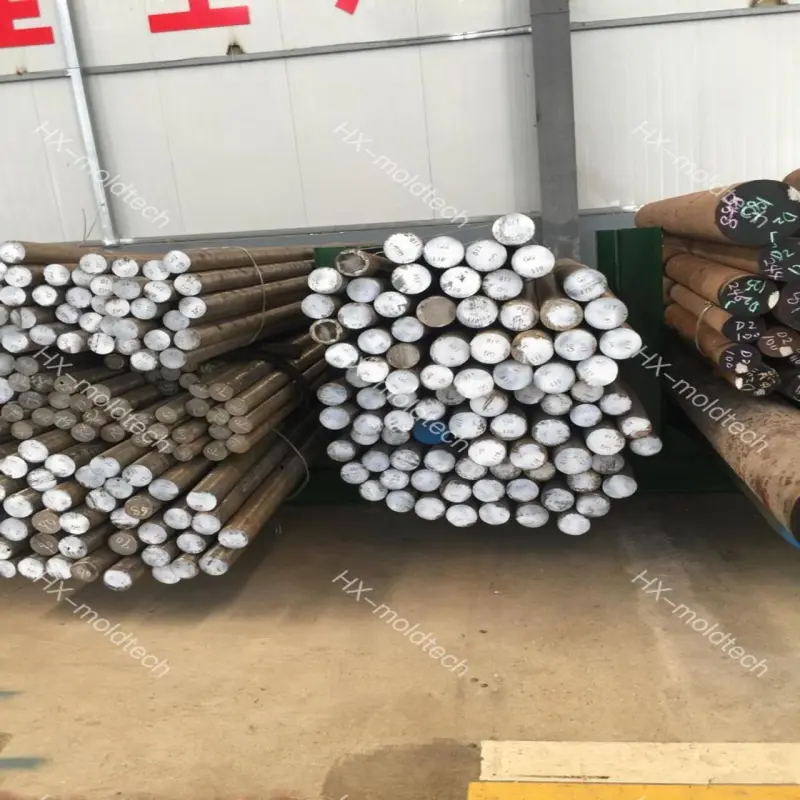

For hot forged or hot rolled bar, usually the delivery condition is hot forged or rolled, annealed, rough turned.

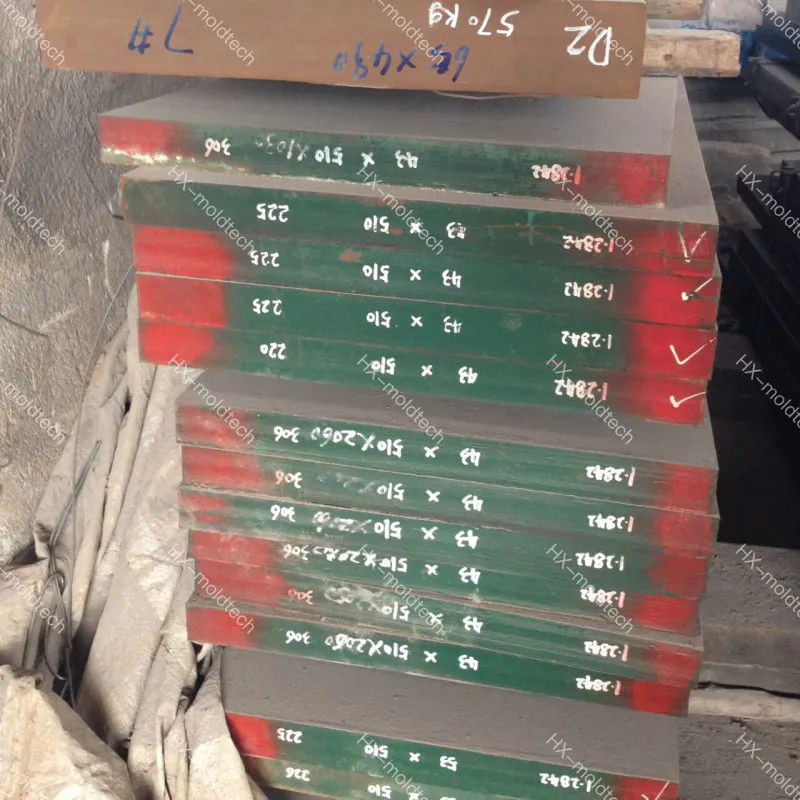

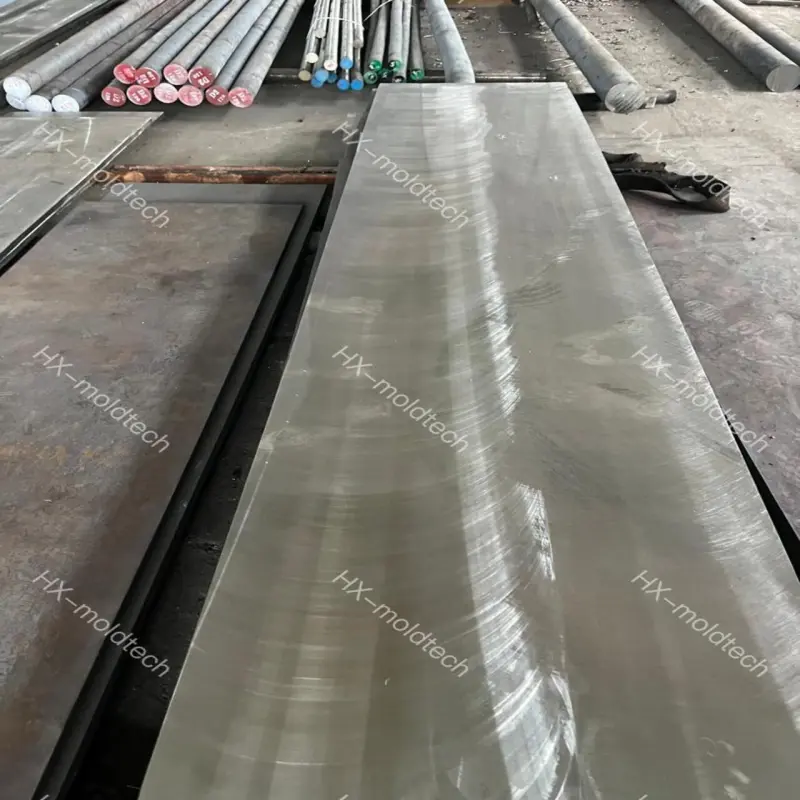

For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface.
For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.
Hongxin Mold Tech Co.,Ltd. owns 1 set of Hot Rolling Production Line at size range flats 8-80*210-710mm, rounds 16-50mm Dia.
12 sets of Hydraulic Forging Hammers from Power 560kgs to 6000kgs which could cover flats 40-300*210-710mm.
8 sets of EF+LF+VD
5 sets of ESR
9 sets of Milling Machines
10 sets of Turning Lathes
6 sets of Precision Milling Machines.
CERTIFICATION: GB/T19001-2016/ISO9001:2015
Products' List
Q1:Are you trading company or manufacturer ?
We are the largest tool steel manufacturer in Daye & Huangshi. We can provide a wide range of steel products.
Q2:What is alloy steel round bar export packing?
Usually bundling for large diameter,small diameter bars in bulk or as customer's demand.
Q3.What is your MOQ?
We accept small order,if it is stock,any quantities can be accepted.
Q4.What is your lead time?
Depends actual order,around 20-35 days,or negotiation.
Q5.Can you supply sample?
Yes,we can.Sample fee according to your size.
Q6:What certificates do you have?
ISO, ABS, BV, CCS, Dnv, Lr, Gl, Mill Certificate
Q7: How can I get your quotation as soon as possible?
The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement,we will work out a best price soon.
