DIN 1.2550/6CrW2Si Hot Worked Tool Steel
Exceptional Thermal Stability
DIN 1.2550 maintains hardness up to 45 HRC at 650°C, outperforming H11/H13 steels in high-temperature environments. This makes it ideal for hot forging dies and extrusion tooling subjected to cyclic thermal loads.
Precision Machinability
Despite its high hardness, DIN 1.2550 exhibits excellent machinability in the annealed state (229-285 HB). Its uniform microstructure minimizes tool wear during grinding and polishing, reducing production costs.
Versatile Industrial Applications
From cold shear blades to brass die-casting inserts, DIN 1.2550 adapts to diverse tooling needs. Its balance of toughness and wear resistance extends tool lifespan by 30% in high-impact applications like heavy-duty stamping.
- HONGXIN
- DAYE
- 30DAYS
- 8000TONS/MONTH
- Information
DIN 1.2550/60WCrV7/6CrW2Si Hot Work Tool Steel
1. DIN 1.2550 Tool Steel Introduction
DIN 1.2550/60WCrV7/6CrW2Si is a high-carbon, tungsten-chromium alloyed cold work tool steel renowned for its exceptional wear resistance, thermal stability, and deep hardenability. With a composition of 0.55-0.65% carbon, 2.20-2.70% tungsten, and 1.00-1.30% chromium, it achieves a hardness of 60-62 HRC after oil quenching and tempering. Its low distortion rate during heat treatment makes it ideal for complex tools like extrusion dies, hot forging tools, and precision shear blades. Widely used in automotive, metalworking, and tooling industries, DIN 1.2550 combines durability and cost-effectiveness for demanding applications.
| Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | ||
| Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | ||
| Delivery condition | Forged; Hot rolled; Cold drawn | ||
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | ||
| Payment terms | T/T;L/C;/Money gram/ Paypal | ||
| Trade terms | FOB; CIF; C&F; etc.. | ||
| Packing | Standard packages or as per customers request. | ||
| Delivery time | 30-45 days | ||
| Application | 60WCrV7 is used to draw steel pipe mandrel, swaging, punching, piercing, trimming die and cutting blade, forming and clamping die. | ||
2. DIN 1.2550 Tool Steel Supply Range

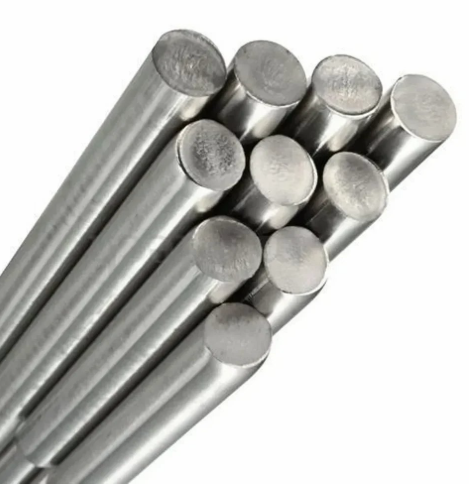

| Size | Round | Dia 12-500mm | |
| Plate/Flat/Block | Thickness 8mm-300mm | ||
| Width 210mm-710mm | |||
| Process | EAF+LF+VD+Forged+Heat treatment(optional) | ||
3.DIN 1.2550 Tool Steel Standards & Chemical Composition
| Grade | C | Mn | Cr | V | Si | W | |||
| 60WCrV7/1.2550 | 0.55-0.65 | 0.15-0.45 | 0.90-1.20 | 0.10-0.20 | 0.50-0.70 | 1.80-2.10 | |||
| 6CrW2Si | 0.55-0.65 | 0.40 | 1.00-1.30 | / | 0.50-0.80 | 2.00-2.70 | |||
4. DIN 1.2550 Tool Steel Physical & Mechanical Properties
Physical Properties
| Property | Metric Units | Imperial Units |
|---|---|---|
| Density | 7.85 g/cm³ | 0.283 lb/in³ |
| Melting Point | ~1430°C | ~2610°F |
| Thermal Expansion (20-200°C) | 11.8×10⁻⁶/°C | 6.6 µin/in·°F |
Mechanical Properties
| Property | Metric Units | Imperial Units |
|---|---|---|
| Hardness (Quenched & Tempered) | 60-62 HRC | 60-62 HRC |
| Tensile Strength | 1900-2100 MPa | 275,000-305,000 psi |
| Impact Toughness (Charpy V-notch) | 12-18 J | 9-13 ft-lb |
Thermal Fatigue Resistance: Outperforms conventional grades like 1.2343 in high-temperature cycles
5. DIN 1.2550 Tool Steel Heat Treatment
Annealing: Heat to 700-730°C, slow cool to ≤650°C. Final hardness: 229-285 HB.
Quenching: Oil quench from 860-900°C to achieve uniform hardness (53-56 HRC).
Tempering: Temper at 200-470°C for 1-2 hours. Double tempering recommended to reduce residual stress and enhance toughness.
6. DIN 1.2550 Tool Steel Applications
DIN 1.2550 excels in high-stress and high-temperature environments:
Cold Work Tools: Heavy-duty punches, shear blades, and blanking dies.
Hot Work Tools: Hot forging dies, extrusion tooling for brass/copper, and high-temperature casting inserts3.
Cutting Tools: Precision knives, thread rolling dies, and woodworking tools.
Industrial Components: Wear plates, guide rails, and high-pressure fixtures.
Why Choose DIN 1.2550?
30% longer service life compared to H11/H13 steels in thermal cycling.
Minimal distortion during hardening, ideal for complex geometries
Key Advantages of DIN 1.2550 Steel
Superior Wear Resistance: High tungsten and chromium content forms durable carbides, reducing tool wear in abrasive environments.
Deep Hardenability: Uniform hardness in large cross-sections due to optimized manganese (Mn) and vanadium (V) synergy.
Cost Efficiency: Balances performance and affordability, ideal for medium-to-high volume production.
7.Delivery condition

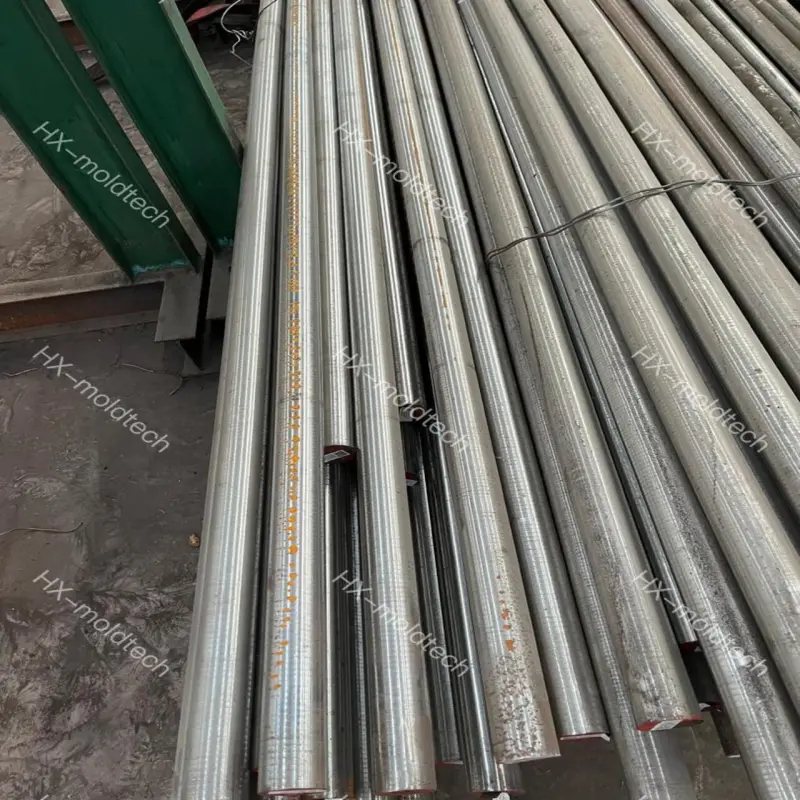

For hot forged or hot rolled bar, usually the delivery condition is hot forged or rolled, annealed, rough turned.

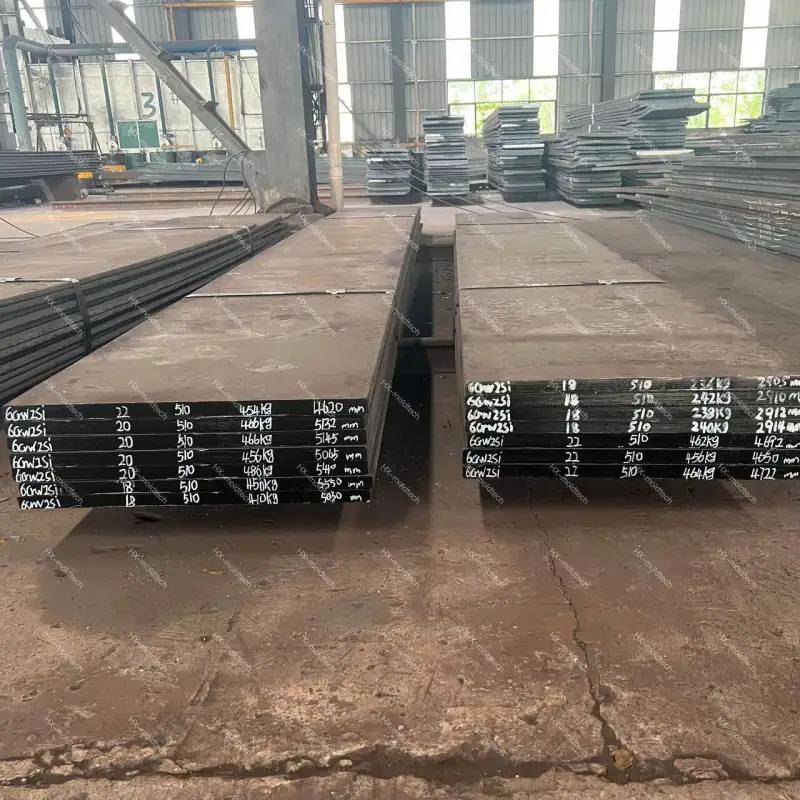

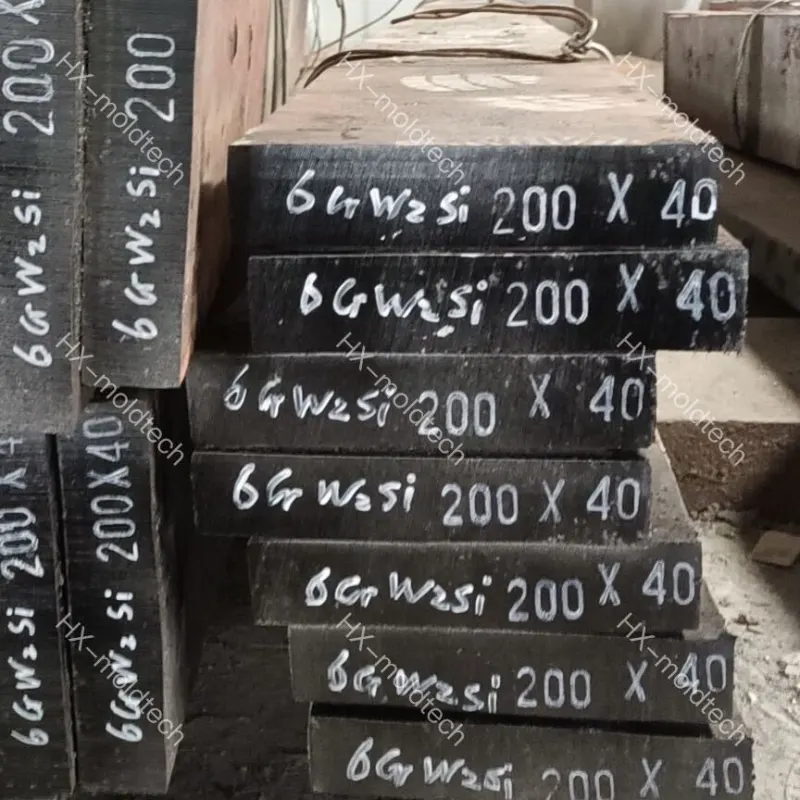

For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface.
For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.
Hongxin Mold Tech Co.,Ltd. owns 1 set of Hot Rolling Production Line at size range flats 8-80*210-710mm, rounds 16-50mm Dia.
12 sets of Hydraulic Forging Hammers from Power 560kgs to 6000kgs which could cover flats 40-300*210-710mm.
8 sets of EF+LF+VD
5 sets of ESR
9 sets of Milling Machines
10 sets of Turning Lathes
6 sets of Precision Milling Machines.
CERTIFICATION: GB/T19001-2016/ISO9001:2015
Products' List
Q1:Are you trading company or manufacturer ?
We are the biggest tool steel factory at Daye & Huangshi. We can provide a wide range of steel products.
Q2:What is alloy steel round bar export packing?
Usually bundling for large diameter,small diameter bars in bulk or as customer's demand.
Q3.What is your MOQ?
We accept small order,if it is stock,any quantities can be accepted.
Q4.What is your lead time?
Depends actual order,around 20-35 days,or negotiation.
Q5.Can you supply sample?
Yes,we can.Sample fee according to your size.
Q6:What certificates do you have?
ISO, ABS, BV, CCS, Dnv, Lr, Gl, Mill Certificate
Q7: How can I get your quotation as soon as possible?
The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement,we will work out a best price soon.
